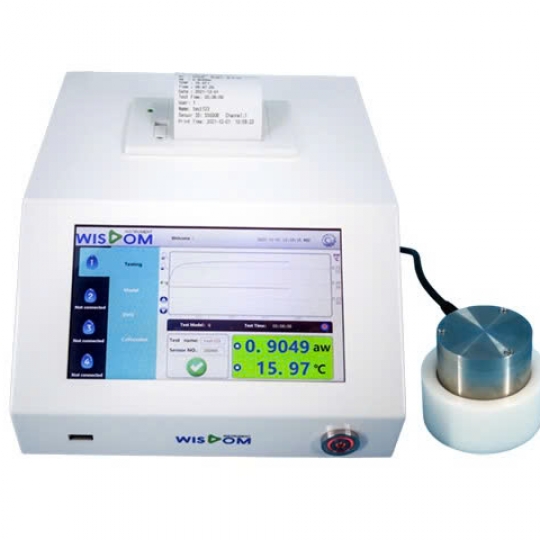

AWLAB PLUS BENCHTOP DEVICE

MODEL: AWLAB PLUS

• Fast benchtop water activity instrument suit;
• Adopt imported world-leading sensors to ensure the accuracy of data;
• Comply with AOAC, ISO, USP and other standards;
• CE, ROHS, FCC and PSE certification;
• 7-inch 800 × 480 touch LCD capacitive large screen;
• At the same time, it has the usual measurement mode, rapid measurement mode and continuous display mode;
• Real time display of test curve;

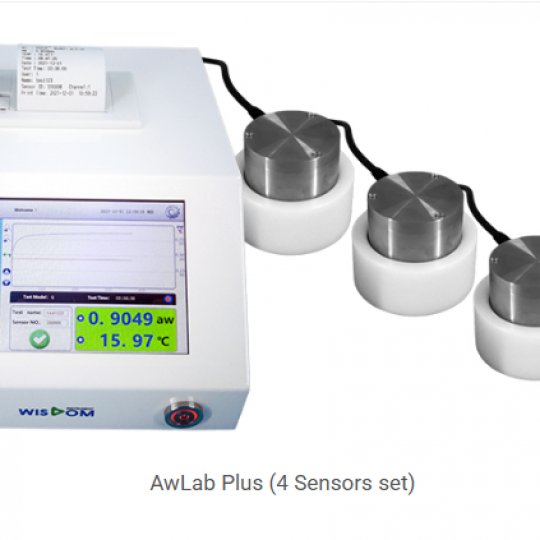

• Up to four-channel measurement systems to improve test efficiency;
• Fast measurement function, the fastest 3 minutes, typical 5 minutes to obtain results, almost no loss of measurement accuracy;
• Support single-point and multi-point calibration, and display the latest calibration information on each channel;
• User hierarchical login management;
• Audit trail, compliant with CFR 21 Part 11 and GMP and GLP certification standards;
• Multilingual system: Chinese, English, French, Spanish, etc;
• USB and RS232 interface / RS485 (optional);
• 65535 groups of data storage for each channel;
• Printer built in to print at any time;
• Software real-time control, can test storage and processing data, while real-time graphics display hyperbolic (water activity and temperature);
• Software Output bmp,excel etc.;

Device type	4-channel water-activity measurement
Operating conditions	-10…40 °C
Measurement range	aw: 0-1.0000aw temperature: -10-50 °C
Accuracy	aw: ±0.01 aw (10…30 °C) temperature: ±0.1 °C
Display	aw: 0.0001aw;  temperature: 0.01°C
Long-Term Stability	<0.025aw/year
Calibration / Adjustment	one ~six points Calibration
Screen and Button	touch 7″ Large screen LCD
Built-in printer
Trend indicators
Test model	Quick model; normal model; continue model
Data store	65535 sets of data each channel
Housing material	Steel plate
Housing dimensions	251 x 120 x 220 mm
Weight	about 3000g
Maintenance	Annual calibration (recommended)
Software
USB connection
RS232/RS485	(RS485 option)
Power supply	110…230 V / 50…60 Hz
Including	AwSensor-P*1, AwBase*1, AwCup*20, AwSoft(software), USB line, power supply, Operation manual.
Language	English , Chinese, French, Spanish and etc
Ordering Information	Order number    Model 3000 AwLab Plus Accessory(option) 9000    AwSensor-P 9001    AwBase 9002    AwCup 9003    AwStandard 9004    AwPaper 9010   AwRS485
