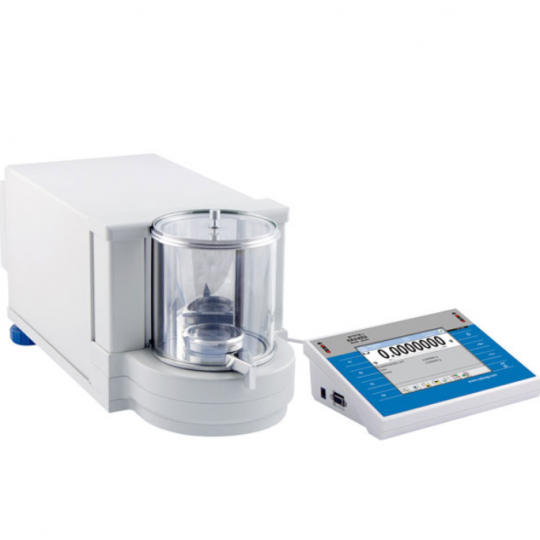

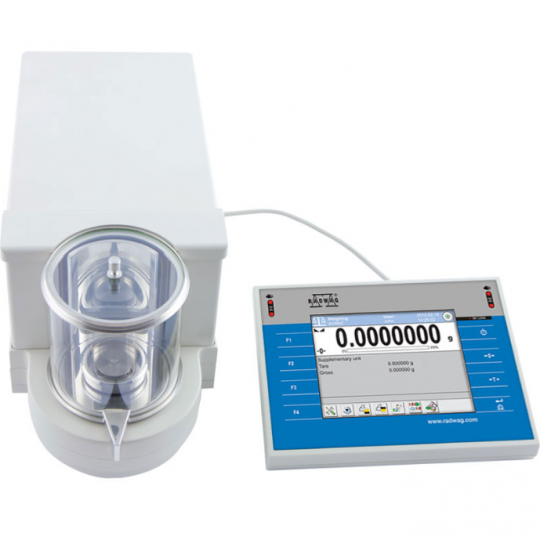

MYA 21.4Y Microbalance radwag.

Datasheet

Metrological parameters

Maximum capacity [Max] 21 g

Minimum load 100 µg Readability [d] 1 µg

Verification unit [e] 1 mg

Tare range -21 g

Standard repeatability [5% Max] 1 µg

Standard repeatability [Max] 3 µg

Standard minimum weight (USP) 2 mg

Standard minimum weight (U=1%, k=2) 0.2 mg

Permissible repeatability [5% Max] 1.6 µg

Permissible repeatability [Max] 4 µg

Linearity ±7 µg

Eccentric load deviation 7 µg

Sensitivity offset 4×10-6×Rt

Sensitivity time drift 1×10-6/Year×Rt

Stabilization time max 10 s

Adjustment internal (automatic)

OIML Class I

Sensitivity temperature drift 1×10-6/°C×Rt

Physical parameters

Leveling system : semi-automatic – Level SENSING

Display 5.7” resistive colour touchscreen

Weighing chamber doors automatic

Delivery components:  Microbalance, terminal, weighing pan, weighing pan shield, glass lid, power supply, pincette, brush, fabric dust cover.

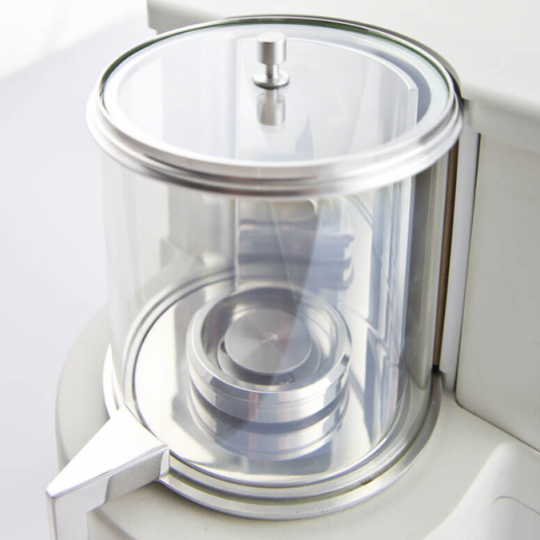

Weighing chamber dimensions : ø 90×90 mm

Weighing pan dimensions : ø26 mm

Packaging dimensions : 750×492×595 mm

Net weight : 9.1 kg

Gross weight : 16.6 kg

Construction

Protection class: IP 43

Communication interface

Communication interface:  2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi

Electrical parameters

Power supply Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A

Balance: 12 – 15V DC 1.1A max

Environmental conditions

Operating temperature +10 – +40 °C

Operating temperature change rate ±0.3 °C / 1 h (±1 °C / 8 h)

Relative humidity 40% – 80%

Relative humidity change rate ±1% / h (±4% / 8 h)
