Paper Burst Tester
-
196
-
0765 259 545

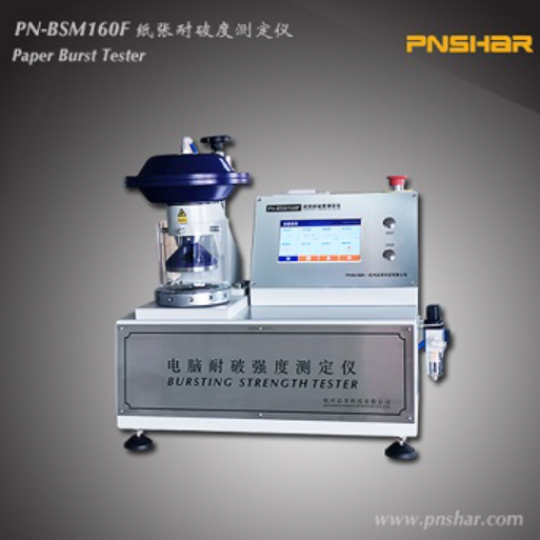

PN-BSM160F Paper Burst Tester
Categories：Pulp & Paper Tester
Name： Paper Burst Tester
Model：PN-BSM160F
PN-BSM160F bursting tester is designed and developed according to GB/T 454 and ISO2758.
Categories：Pulp & Paper Tester
Name： Paper Burst Tester
Model：PN-BSM160F
PN-BSM160F bursting tester is designed and developed according to GB/T 454 and ISO2758.
Technical parameter
Power supply: AC220V±10% 2A 50Hz；
Accuracy: ±0.5%；
Resolution: 0.1 kPa；
Measuring range: (70 ～ 1400)kPa；
Pumping rate: (95±5)ml/min
Clamping force: ≤1200 kPa (Adjustable)
Air compressor: Rated pressure 0.6～0.7MPa; Exhaust volume 0.02～0.3m³/min（To be ordered）
Diaphragm: Bulge height 9±0.2 mm pressure range 30±5 kPa
System sealing: Within 1min pressure drop＜10%FS
Display: 7” color touch screen
Printer: Thermal printer
Data Output: RS232(Standard) / USB（Optional）
Working condition: Indoor temp.20 ± 10 °C relative humidity ＜ 85％
Dimension: (535 × 365 × 585) mm（L×W×H）
Net Weight: About 68 kg
Product Similar
Paperboard Burst Tester
Categories：Corrugated Box Tester
Name：Paperboard Burst Tester
Model：PN-BSM600F
PN-BSM600F bursting tester is designed and developed according to GB/T 1539 and ISO2759. The tester is Mullen type which is suitable for measuring the burst strength (also called bursting strength) of various paperboard and single and multi-la yer
0765 259 545
Name：Stiffness Sample Cutter
Model：PN-STC70
PN-STC70 stiffness sample cutter is a sampling device for PN-ST500 computer stiffness tester and PN-CST crease stiffness tester
0765 259 545
Name：Thickness Tester
Model：PN-PT6
PN-PT6 Thickness Tester is designed to determine thickness of paper and cardboard for the quality control (QC) and research and development (R&D).
0765 259 545
Crush Tester
Categories：Corrugated Box Tester
Model：PN-CT300F
PN-CT300F Crush tester applies to the RCT of paper 0.10~0.58mm thickness ECT and PAT for corrugated board FCT for single flute corrugated board and CCT & CMT for corrugated paper
0765 259 545
PN-48AF Automatic Color Tester
Model: PN-48AF
Manufacturer: Pnshar - China
Contact for quote: 0765 259 545
Introduction:
PN-48AF Automatic Color Tester is used to measure the D65 brightness (R457) D65 fluorescence brightness color and color difference opacity/transparency light scattering coefficient light absorption coefficient and ink absorption value of ob jects.
Application:
Paper, pulp, chemical fiber, textile, plastic, ceramic, enamel, etc.
0765 259 545
Bekk Smoothness Tester
Model：PN-BSTF
PN-SHAR - CHINA
The PN-BSTF Bekk smoothness tester is a high-precision Bekk paper and board surface smoothness testing instrument designed and developed by our company according to the new national standards GB / T 456 and ISO5627.
0765 259 545
Used for high pressure burst gauges
Brand: Pnshar - China
0765 259 545
Name：PAT Sample Holder
Model：PN-PAC
PN-PAC sample holder is a necessary accessory for PAT test. The sample holder consists of a lower pin holder an upper pin holder and pins.
0765 259 545
PN-PL8A Pneumatic Sheet Press
Model：PN-PL8A
1).The maximum sample size: 310*310mm 2).Standard Pressure: 0.345Mpa 3).Cylinder diameter: 200mm 4).Max Pressure: 0.8Mpa Pressure control accuracy: 0.001MPa 5).Cylinder maximum output: 25123N 6).Size: 630mm*400mm*1280mm
0765 259 545
Used for low pressure burst gauges
Brand: Pnshar - China
0765 259 545
