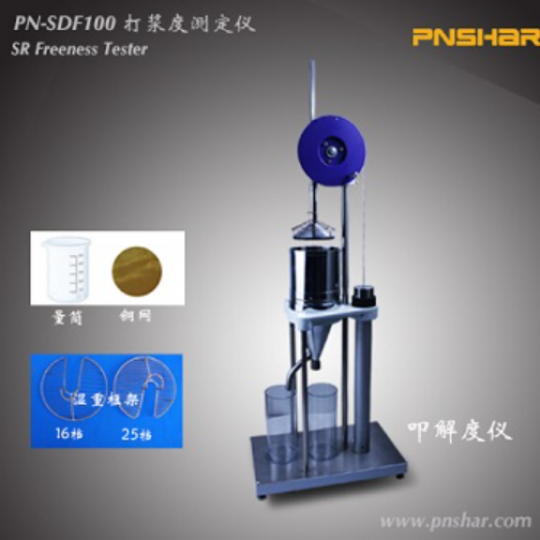

SR Freeness Tester

Introduction

    PN-SDJ100 Beating Freeness Tester is designed to determine the rate of drainage of a dilute pulp suspension and express it in terms of the Schopper-Riegler(SR) value. The tester obeys the related prescriptions mentioned in ISO 5267/1 and GB3332.
    The Schopper-Riegler test is designed to provide a measure of the rate at which a dilute suspension of pulp may be dewatered. It has been shown that the drainability is related to the surface conditions and swelling of the fibre, and constitutes a useful index of the amount of mechanical treatment to which the pulp has been subjected.

Technical parameter

Measuring range: 1~100°SR
The division value of the reading measuring cylinder :1°SR
Draining time for the outgate:（149±1）s
Residual volume: (7.5~8)mL
Work environment:  Temp（20  ±  10 ）°C；humidity ＜ 85％
Dimension: (450 × 250 × 1040) mm （L×W×H）
Net Weight: About 31.4 kg.

Product features

The phospher bronze wire is non-corrosive for low maintenance
Easy to use and clean
Stainless steel
Robust equipment

National standard: ISO 5267/1 、GB/T 3332 、QB/T1054
