ColorFlex Coffee Spectrophotometer

ColorFlex Coffee Spectrophotometer

ColorFlex Coffee Spectrophotometer
Model: ColorFlex L2 Coffee
Manufacturer: Hunterlab - USA

Ứng dụng:

ColorFlex L2 SPECIFICATIONS:
++ MEASUREMENT SPECTRUM SYSTEM:

- Measurement principle: Upward or forward dual beam spectrometer
- Optics: 45°/0° annular according to ASTM E1164
- Spectrometer: closed optics; 256 diode elements and high resolution
- Gate diameter/Measurement diameter: 31.8 mm (1.25 in), sample measurement area 25.4 mm (1 in).
- Spectral range: Range: 400 nm - 700 nm
- Spectral resolution: < 3 nm
- Effective bandwidth: 10 nm
- Photometric range: 0 to 150 %
- Light source: Full spectrum Xenon lamp
- Measurement time: 1 second
- Lamp life: 10 years
- UV content: Calibrated, Fixed UV content level
- Standards compliance: CIE 15:2018, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
- Traceability standard: Instrument standard designation according to the National Institute of Standards and Technology (NIST) in accordance with CIE 44 and ASTM E259
PERFORMANCE
- Between devices: ∆E2000 <0.15 D65/10 (Average) on BCRA CCSII Tiles
- Colorimetric repeatability: ∆E 2000*<0.03 D65/10 (Maximum) on White Tiles
SOFTWARE
- Data Viewing Modes: Color Data, Spectrum, EZ View, Tristimulus Color Chart, Pass/Fail Color Indicator, Time and Date, Auto Name, Auto Save, Data Backup and Restore, High Resolution Camera Capture
- USB Flash Drive Features: Data Backup, Transfer Working Data to Multiple Devices, Export Data to Excel
- Other features: Pass/Fail rating, Average of multiple measurements, Find nearest standard, Set multiple measurements automatically
- Illumination sources: A, C, D50, D55, D65, D75, F02, F07, F11
- Observer: 2° and 10°
- Colorimetric units: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ, Rd,a,b
- Color deviation: ∆L*a*b*, ∆Lab, ∆L*C*h, ∆Yxy, ∆XYZ
- Color difference index: ΔE, ΔE*, ΔE*2000, ΔH*, ΔC*, ΔEcmc
- Index and figures: E313 Whiteness and Tint (C/2° or D65/10°), E313 Yellowness (C/2° or D65/10°), D1925 Yellowness (C/2°), Y Brightness, Z%, 457 nm Brightness, Opacity, Color Strength (Average and Single Wavelength), Gray Change, Gray Stain, Metamerism Index, Shade Number

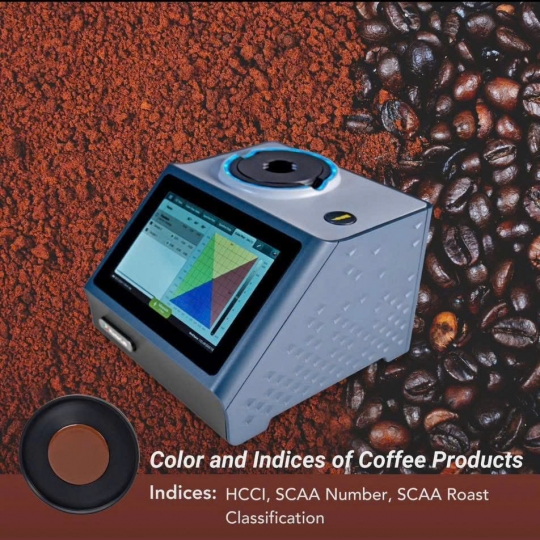

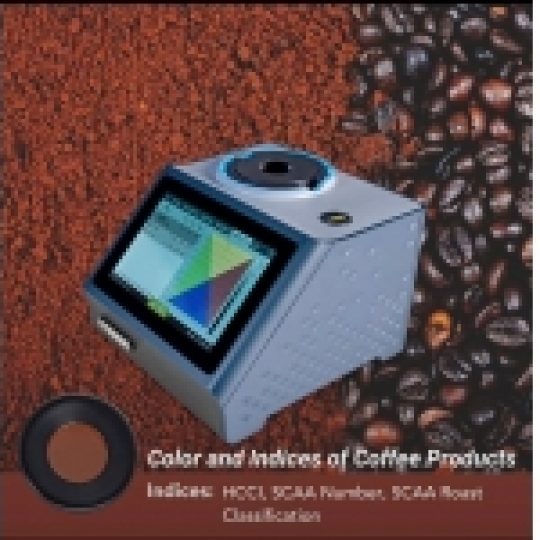

- Ground Coffee Color Model Only: HCCI (HunterLab Coffee Color Index values), SCAA Number, SCAA Roast Classification, colorimetric and spectral data
- Data storage: Up to 1 million records; 8 GB
- Languages: English, German, Traditional and Simplified Chinese, Spanish
++ OTHER SPECIFICATIONS:
- Dimensions (HxWxD): 16x21x24 cm
- Weight: 2.75 kg
- Display: 7” touch screen, high resolution 1280x800
- Interface: 2 USB ports, HDMI, Foot switch input, Ethernet, USB service port, Convenient physical measurement/action button
- Power supply: 90–240 VAC, 47–63 Hz
- Operating environment: 10°-30°C, 10%-90% RH
- Storage environment: -20° - 65°C, 10% - 90% RH
++ Standard accessories with main machine: White standard plate, Green standard test plate, Black reflective glass, 25 mm (1 in) measuring port plate, Certificate of origin, Power supply, Cleaning cloth, User manual, USB, stylus.
++ Accessories Optional accessories according to needs: Glass measuring cups for liquids, powders, and grains, black sample cups, 13mm, 25mm masks, etc.
