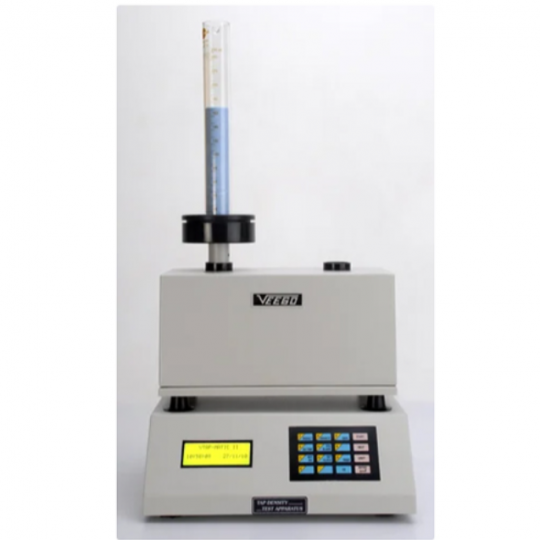

Veego Powder Density Meter, VTAP/MATIC – II

Veego, VTAP/MATIC – II Powder Density Meter

Industry: Pharmaceuticals – Cosmetics

Manufacturer: Veego – India

Features:

–  Microprocessor-based instrument

–  Supports both USP-I and USP-II methods

– Optional ASTM method

–  Easy-to-use LCD display.

–  Stepper motor drive

–  Built-in machine validation function.

–  Membrane keyboard

–  Printer port interface

–  Easy-to-use on-screen information

–  On-screen information for test status

–  Alphanumeric data entry for various test parameters

–  Automatic repetition of typing until test completion

–  Calculation of bulk density, particle density, compressibility index and Hausner ratio.

–  Error messages to avoid incorrect data entry

–  Print according to GLP requirements.

–  Storage capacity of up to 24 methods

–  Password to protect data

–  Rotate and tap the cylinder simultaneously

Technical parameters:

–  Test methods: USP I and USP II, optional ASTM

–  USP method specifications:

+ USP-I method:

– Moving cylinder height: 14 mm ± 2 mm

– Tapping frequency: 300 times/min

+ USP-II method:

– Moving cylinder height: 3 mm ± 10% (± 0.3 mm)

– Tapping frequency: 250 times/min

– Tapping setting range: 1 – 9999

– Rotate the cylinder: Rotate and tap the cylinder simultaneously

– Stepper motor drive

– 20 x 4 line LCD display

– Table Keys: 16 setting keys

–  EPSON needle interface port

–  Power supply: 220/230 VAC, 50/60 Hz, 2 A
