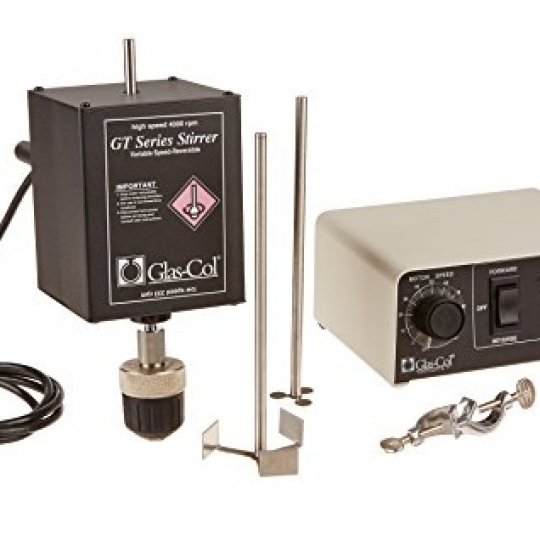

Glas-Col 099D GT31 Stirrer
Model: 099D GT31
Manufacturer: Glas - Col - USA
Operation:
Connect the motor cord to the control. This plug is polarized so that it can only be plugged in one way. Make
sure the forward/reverse switch is in the center OFF position and the motor speed knob is fully counter
clockwise and snapped to the off position. Plug the control power cord into a properly grounded and
polarized receptacle. Select the desired direction with the forward/reverse switch. Turn the motor speed
knob clockwise to turn on and set the motor speed.
The motor is a totally enclosed permanent magnet motor with 5/16" diameter shafts on each end. The high
speed shaft is rated to 4000 rpm (.26lb-in. torque); low speed shaft rated to 333 rpm (3.6 lb-in. torque).
Control Features:
1. SPEED POSITION KNOB: This allows adjustable speed of the K Series drive; power on switch.
2. FORWARD/REVERSE SWITCH: For direction of motor.
3. CIRCUIT PROTECTOR: The stirrer circuit is protected against overloads with a 2 - 1/2 slow blow fuse.
4. OUTPUT SOCKET: Socket for connection for motor to control
Always use proper safety equipment when stirring, for example, gloves, glasses, etc. Read and follow
instructions that are supplied with your stirrer drive.
When reversing the motor direction, let the motor stop before changing direction.
As a general rule, use the slower speeds whenever possible for the work to be done. Limit your use of the
high-speed shaft to small propellers and low viscosity �luids. Large paddles will overload the motor, even
running in water, if you use it at maximum speed on the high-speed shaft.
Digital Pulse Mixer
Model: 099A PPM24CE
Manufacturer: Glas-Col - USA
The Glas-Col Pulse Shaker is capable of low or high speed shaking for most applications.
The instrument can be attached to instruments, racks, and shaker plates for repeatable, accurate results.
The Pulse Shaker can be used in blood bank labs, clinical labs, or water testing labs, and many other research labs.
Vortek Shaker with Volumetric Flask
Model: 099A LC1024100
Manufacturer: Glas-Col - USA
Contact for quote: 0765 259 545
Glas-Col’s Large Capacity Mixer is an ideal choice for labs requiring versatility. Whether you require gentle, orbital-type shaking or more vigorous vortexing of samples, this mixer fulfills those needs effectively. It accommodates a wide variety of vessels that can be quickly interchanged. Additionally, custom cartridges designed for specific applications are available, constructed from chemical-resistant foam and ABS plastic.
Features:
At the low end of the 100-2,000 rpm speed range, the sample is mixed with a gentle, orbital motion. The high end of the range will mix the sample with a vigorous vortexing action.
The pulsing feature can be used to interrupt the mixing process, to join upper and lower strata, for more thorough mixing.
DC motor, with filtered control, allows the Large Capacity Mixer to run smoothly and quietly, and prolongs the operating life of the unit.
Lab rotators
Model: 099A RD4512
Glas - Col - USA
Lab rotators are essential tools for researchers, providing gentle yet thorough mixing of test tube contents for cell cultures, delicate solutions, and viscous samples. This continuous, controlled rotation ensures even distribution of reagents, promotes consistent reactions, and enhances experimental accuracy.
2L Separatory Funnel Shaker
Model: 099A NSM12
Manufacturer: Glascol - USA
Benchtop shaker:
Adjustable speed range
Several holder attachments are available for various containers
Midrange and Floor shakers:
Nutating platform creates a gentle slosh motion at low speeds
Nutating platform creates a vigorous action at full speeds
Mimics hand shaking.
Primarily used with separatory funnels up to 2-liter in size for repeatable extraction work.
Great for many EPA methods.
