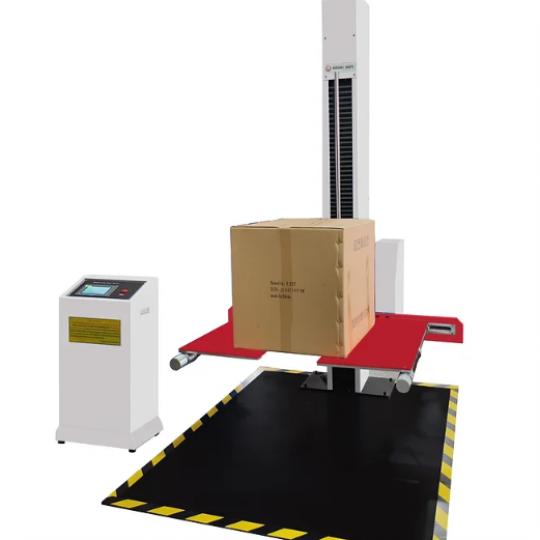

GS-P16D Double Wings Package Drop Test Machine

GS-P16D Double Wings Package Drop Test Machine

Features
Equipped with a digital display and a decoder for height recording, to accurately detect the drop height, and the tolerance will not exceed 2% or 10MM.
Adopt single-arm structure, with electric lift and down function.
This machine has the advantages of low impact vibration, stable and reliable.
Apply standard
ISO 2248-1972E
JIS Z0202-87
GB4757.5-84

Ứng dụng:

Drop height

400-1500mm

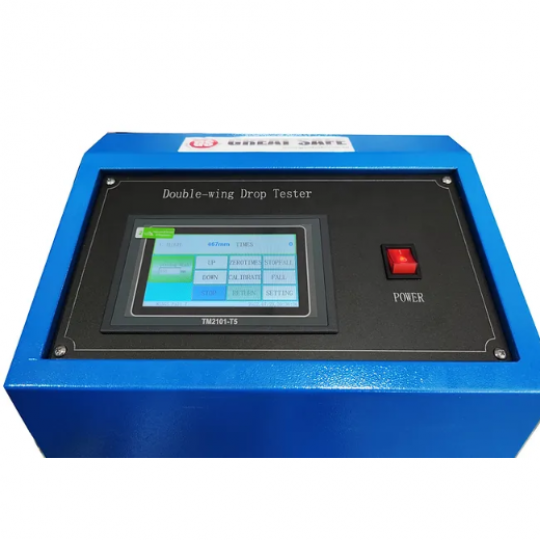

Display

Button or PLC Screen

The sample’s max weight

80kg

The sample’s max size (W*D*H)

1200*800*1000mm

The sample’s min size (W*D*H)

100*10*10mm

Drop panel area

1400×1200mm (material is Solid steel plate)

Floor size

1400*1400*14mm

Control box dimension

(L*W*H) 350*350*1100mm

Drop error

±10mm

Deviation of drop horizon

Less than 1°

Machine Dimension (L*W*H)

1260*1460*2220mm

Machine net weight

397Kg

Motor power

0.75KW

Power Supply

Three-phase, 380V±10%, 50/60Hz(can be appointed), 1.5KW
