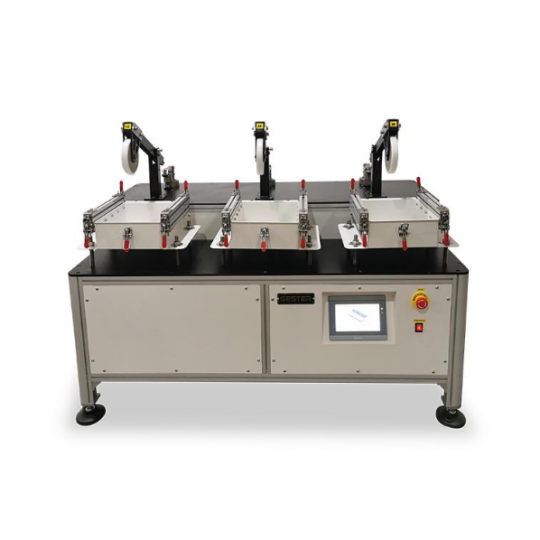

Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester GT-KB40

Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester GT-KB40

Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester
Model: GT-KB40
Brand: Gester - China

Ứng dụng:

Upholstery Fabrics Sewn Seam Dynamic Fatigue Tester
Model: GT-KB40
Brand: Gester - China
Application:
Sewn Seam Dynamic Fatigue Tester is to measurement of or visual evaluation of yarn slippage and other types of failures in the three most commonly used upholstery seams - warp sewn to warp (wale to wale), filling sewn to filling (course to course), and warp sewn to filling (wale to course). The stresses at the seam are created by imposing a cyclic, impact, and penetrating load which fatigues the seam construction.
Feature
The stresses at the seam are created by imposing a cyclic, impact, and penetrating load which fatigues the seam construction.
Key Specifications
- Test position : 3
Drive mode: Cylinder drive
- Impact speed: (0.4±0.03)Hz,  (25±2)cycles/min
- Testing times: 7000cycles
- Impact wheel mass: 3.75kg (8.25LB)
- Dropping height: 150 mm (6 in.)
- Testing sample : 190mmx255mm
Power supply: 1∮AC 220V  50/60HZ
Dimensions: 160x90x145cm
- Weight: 150kg
- Standards: ASTM D4033
Accessories;
Standards accessories:
1 set: Fixture
1pc: Air pipe
1pc: Power line
- Optional accessories:
Optional: Air compressor
