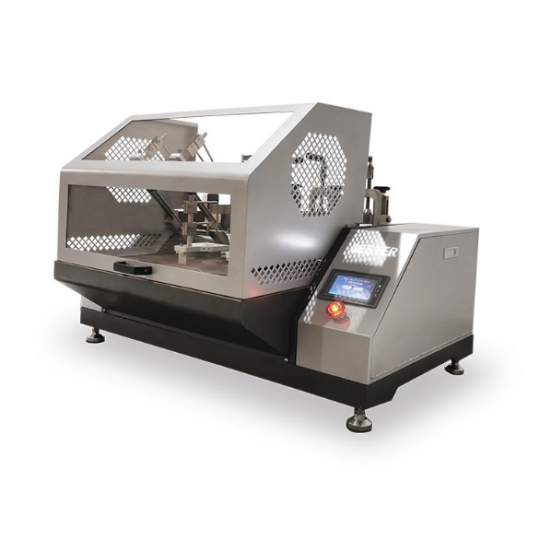

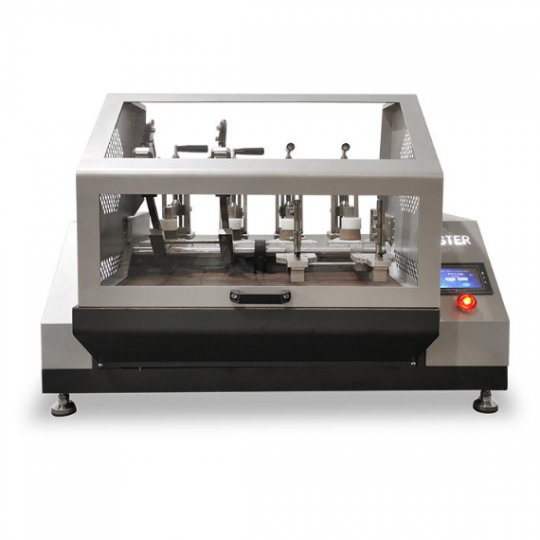

Whole Shoes Flexing Tester GT-KA01-2

Whole Shoes Flexing Tester GT-KA01-2

Whole Shoes Flexing Tester
Model: GT-KA01-2
Brand: GESTER - CHINA
Shoes Flexing Tester determine its flexibility resistance of shoes or shoes sole through reciprocating flexing movements under the specified angle and frequency.

Ứng dụng:

Whole Shoes Flexing Tester
Model: GT-KA01-2
Brand: GESTER - CHINA

Product Introduction

Application:

The whole shoes flexing tester is used to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexibility resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.
Feature

1. Shoe Flexing Testing Machine Equipped with acrylic protective cover, which make sure safe operation and low noise.
2. Heel fixture using linear slide for smooth movement with little resistance.
3. Freely set running times and machine automatically stop after test finished.

KSpecification

Model

GT-KA01-2A

GT-KA01-2B

Test sample

Test 4 samples simultaneously

Test 2 samples simultaneously

Control method

Touch screen control

Bending angle

0~ 90° (adjustable)

Test speed

0°~50°, adjustable speed range: 60~230 rpm

50°~90°, adjustable speed range: 60~140 rpm

Counter

0-99,999,99 (7 digits)

Power

1∮AC 220V 50/60HZ  3A

Dimension(W×D×H)

95 x 76 x70cm

58 74 x 72 cm

Weights

223kg

About 150kg

Standards

SATRA TM92ISO 24266 Method A,

HG/T 2871-2022 Method B
