UM-vertical pin bead mill
-
86
-
0765 259 545
UM-vertical pin bead mill
1.Product inlet from the top
2.Outer plus inner peg milling annulus
3.Power input by forced displacement of media in the range 0,1 - 1,5
4.Predispersing zone
5.Internal media recirculation
6.Media separation by centrifuging without screen
7.High efficiency cooling of rotor, outer and inner stator + bottom
1.Product inlet from the top
2.Outer plus inner peg milling annulus
3.Power input by forced displacement of media in the range 0,1 - 1,5
4.Predispersing zone
5.Internal media recirculation
6.Media separation by centrifuging without screen
7.High efficiency cooling of rotor, outer and inner stator + bottom

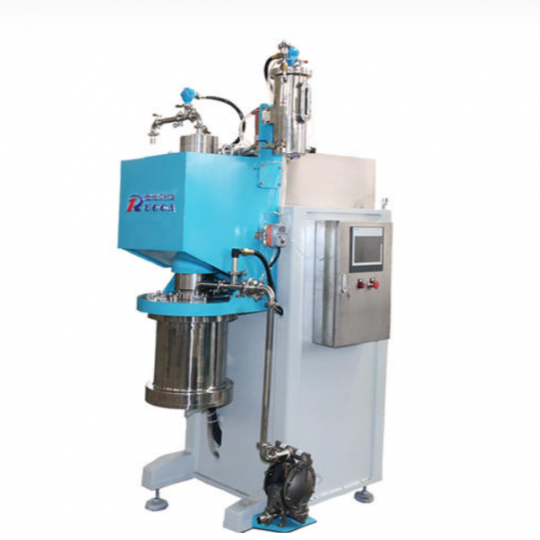

UM-vertical pin bead mill
Model: UM-vertica
Key benefits:
power input primarily by turbulent displacement of media for demanding true grinding and dispersing applications high flow rate capability by internal media recirculation grinding media separation by centrifugal forces outstandingly suitable for recirculation grinding excellently suitable for 1-pass grinding with high flow rate linear scale-up with temperature sensitive products
power input primarily by turbulent displacement of media for demanding true grinding and dispersing applications high flow rate capability by internal media recirculation grinding media separation by centrifugal forces outstandingly suitable for recirculation grinding excellently suitable for 1-pass grinding with high flow rate linear scale-up with temperature sensitive products
| Model | Grinding Chamber Volume L |
Power kW |
Batch L |
Max .Tip Speed |
| UM02 | 0.2 | 2.2 | 0.5-1 | 10-16 |
| UM05 | 0.5 | 3.7 | 1-5 | 10-16 |
| UM2 | 2 | 5.5/7.5 | 3~20 | 10-16 |
| UM6 | 6 | 18.5/22 | 20-200 | 10-16 |
| UM15 | 16 | 45/55 | 150-1000 | 10-16 |
| UM30 | 30 | 75/95 | 150-2000 | 10-16 |
| UM60 | 60 | 160 | 300-3000 | 10-16 |
