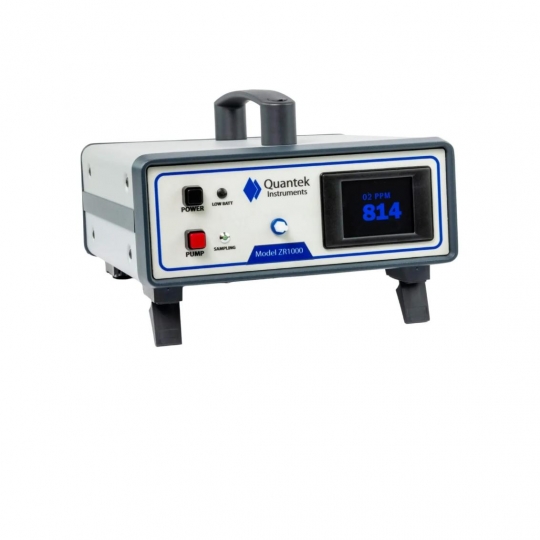

Model ZR1000 Trace O2 Analyzer (0-1000ppm)

Q21 Portable CO2 Analyzer for Spot Checks The Quantek Model Q21 is our next generation portable CO2 analyzer. Use it for package testing, incubator applications, and much more. This microprocessor controlled instrument features onboard data collection, hold function (the reading freezes on the screen when the test is complete), 12 hour internal battery, TFT full color screen, and EasyCal calibration using the touchpad. Readings can be exported to USB thumbdrive (included) as CSV file for further processing. The Q21 comes with battery pack, internal pump, carry case, and accessories..

Model 905 Headspace Oxygen Analyzer The Quantek Model 905 is a benchtop, portable oxygen analyzer used primarily for the measurement of residual oxygen in gas-flushed food packages. The Model 905 is used for the measurement of residual oxygen in food packages. With an expected oxygen sensor life of 4-5 years, it vastly outperforms other oxygen analyzers with a cheap sensor that might last 1-2 years. Use it in the lab, or on the packaging line. While the performance and functionality is the same as our Model 901, the Model 905 is the better choice for conducting testing when the operator is stationary. This is primarily due to its tip up feet, and form factor. Also, its high end rugged metal enclosure ensures its overall durability.

Model 905V Pharmaceutical Vial O2 Analyzer The Quantek Model 905V is a pharmaceutical headspace oxygen analyzer. Use it for headspace oxygen analysis in pharmaceutical products – vials, blister packs, bottles, or difficult tubes of products (such as cosmetics). Achieve results with as little as 1cc of headspace. Pharmaceutical preparations packaged in vials are often gas-flushed to provide a specific atmosphere in the vial, with defined levels of oxygen, nitrogen or other gases. Depending on the product, these vials can range in size from 1 ml to 250 ml or larger. Small vials present some difficulty for oxygen analysis because the sample volume available is often quite small. A five ml vial, for example, may have only one ml of headspace gas. For direct analysis with a pharmaceutical oxygen analyzer, the instrument must be capable of analyzing very small volumes. Our pharmaceutical oxygen analyzer is designed for this process. While we recommend a minimum of 1mL of sample, the analyzer will produce a partial response with as little as 0.5mL of headspace. Using interpolation, the final result can be inferred – or, you can combine two samples to produce a valid, averaged result across 0.5mL samples.

Q41 Rackmount-2U CO2 Analyzer The Quantek Model Q41 is our next generation portable CO2 analyzer. Use it for process systems, inline testing, along with many other types of applications. This microprocessor-controlled instrument features onboard data collection, a TFT full color screen, built in analog output (0-5V), and EasyCal calibration using the touchpad. Additionally, it can be outfitted with options such as a sample pump, or a 12-hour runtime internal battery.

Q30 Benchtop O2 Analyzer The Quantek Model Q30 is our next generation benchtop O2 analyzer. Use it for MAP (modified atmosphere package) testing, along with many other types of applications. This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad. Readings can be exported to USB thumbdrive (included) as CSV file for further processing. The Q30 comes with battery pack, internal pump, carry case, and accessories.

Q31 Benchtop CO2 Analyzer The Quantek Model Q31 is our next generation portable CO2 analyzer. Use it for incubator testing, along with many other types of applications. This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad. Readings can be exported to a USB thumbdrive (included) as a CSV file for further processing. The Q21 comes with battery pack, internal pump, carry case, and accessories.

Model 902P O2 / CO2 Analyzer O2 and CO2 Analyzer for research processes, gas blending, biotech, and other systems. The Model 902P O2 CO2 analyzer measures 0 to 100% O2 concentrations, and 0-1% to 0-100% CO2 vol/vol full scale, in a variety of process, research, and biotech applications. Options include internal sample pump, battery operation, analog outputs, and complete data collection option (including analysis software for long term experiments)

Model 201 Portable oxygen analyzer The Quantek Model 201 is a portable oxygen analyzer used primarily for the measurement of O2 concentration in gas flows, chambers, or gas flushed hoods (such as glove boxes). The analyzer comes with both an “open faced” fitting and a T-fitting, allowing it to be used for analyzing gas flows, or set in chambers where oxygen levels need to be monitored. The sensor operation is not sample flow dependent, and accurate results are obtained on both static and flowing samples.

Q40 Rackmount-2U O2 Analyzer The Quantek Model Q40 is our next generation rackmount oxygen analyzer. Use it for process systems, inline testing, along with many other types of applications. This microprocessor-controlled instrument features onboard data collection, a TFT full color screen, built in analog output (0-5V), and EasyCal calibration using the touchpad. Additionally, it can be outfitted with options such as a sample pump, or a 12-hour runtime internal battery. Readings can be exported to USB thumb drive as CSV file for further processing. The Q40 comes with a power supply, thumb drive, and consumable accessories.

Q20 Portable O2 Analyzer The Quantek Model Q20 is our next generation portable O2 analyzer. Use it for MAP (modified atmosphere package) testing, along with many other types of applications. This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad. Readings can be exported to USB thumbdrive (included) as CSV file for further processing. The Q20 comes with battery pack, internal pump, carry case, and accessories.
