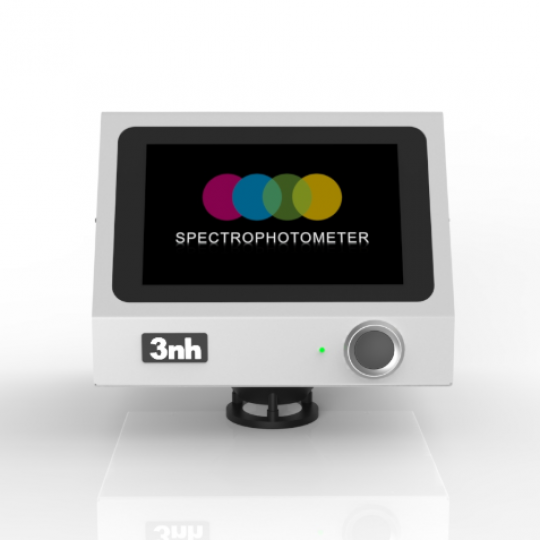

Portable desktop spectrophotometer Model: TS8450 Manufacturer: 3Nh - China Email: sales@yktech.com.vn Introduction: TS8450 is a 45/0 optical portable desktop spectrophotometer, with 256 pixels dual array CMOS image sensor, imported white board, and gives consideration to the speed of measurement and the convenience of operation. It features with repeatability Δ E * ab easily control within 0.02, and inner instrument errors Δ E * ab control within 0.15. This accuracy measurement makes it good to use in the lab color accurate analysis and transfer. The TS8450 portable desktop spectrophotometer is also good to measure the brightness factor and color coordinates of traffic signs, markings and reflective films.Including GB 2893 and GB/T 18833 standard colors, it can customize the rectangular tolerance of polygons manually. Application of TS8450 portable Desktop spectrophotometer: TS8450 portable desktop spectrophotometer color measurement instrument is equipped with a single customized 25.4/8mm measurement diameter, used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be also used for fluorescence sample measurement. In addition, TS8450 portable desktop spectrophotometer is suitable for measuring the brightness factor and chromaticity coordinate of traffic road signs, marking lines and reflective film. It contains GB 2893 and GB/T 18833 standard colors and it can customize the rectangular tolerance of polygons manually.

Liquid spectrophotometer Model: TS4020 3nH - China Introduction: The TS4020 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Adopting a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, it provides a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Saybolt index, petroleum color code, pharmacopoeia chromaticity, etc. It supports micro transmission measurement and has fast measurement speed. Widely used for chromaticity measurement needs in fields such as chemical industry, food and beverage, petrochemical industry, pharmaceutical industry, etc

Introduction:

ColorReader CR5 (Industrial Pro Version) is the creative work of 3nh's core technical elites and joint well-known designers. It embodies the technical strength completed in a short time, the professionalism of high-intensity testing, and the traditional bloodline of innovation and excellence.

ColorReader CR5 (Industrial Pro Version) is an innovative tool for color measurement, reading, color card retrieval and color difference evaluation. It integrates powerful color recognition capabilities in a safe and portable body, and seamlessly connects with mobile phone devices through Bluetooth, which makes the traditional color measuring instrument glow with different application charm.

CR5 An User Friendly ColorReader

◆The instrument itself has a data review function

◆Automatic calibration at startup, no need for tedious instrument calibration; combination of professionalism and meticulousness, equipped with manual calibration function of black and white board. It is recommended that users do simple professional calibration by themselves from time to time to ensure that the instrument always works in a state where it can pass the metrology.

◆The mini whiteboard is inserted into the instrument bag, and the whiteboard is separated from the instrument, which ensures the weather resistance, dirt resistance and wipeability of the whiteboard, and guarantees the standard baseline function of the whiteboard for a long time.

◆Equipped with a tightly buckled dust-proof cover with a delicate touch and an environmentally friendly packaging cloth bag that can be easily carried by hand. Close the cover and power turns off. Easy to carry aroud, you can put it in your car, your bags, or just carry it. It's really conspicuous, safe and reliable.

◆Long battery life, convenient USB port charging and power bank charging. It can measure thousands of times in the screen state of high brightness, and it can measure tens of thousands of times when the screen is turned off.

◆The large screen of the instrument and the mobile phone software display have the simulation function of true color

T90-7 Camera Viewer Color Check Box (Adjustable Illumination Light) T90-7 color light box is 2016 new product, and it adopts 7 light source with 4 sets of LED light (Life up to 25000 times) and 3 sets of fluorescent light source. The unique design combinate of the characteristics of Verivide and X-rite color matching cabinet. The multi light source turn-on makes easy to check the metamerism of samples. The sample is one color under this light, but it will display another color when you switch another light source. With UV light, close to natural daylight, it can be used independently or together with other light sources, more effective to check the dye sample if they have fluorescent whitening agent. The adjustable illumination color matching box offers different light environment for samples, easier to check color difference. Features: 1. Unique International Design Appearance, combination of the characteristics of Verivide and X-rite light box. 2. 7 light source, 4 sets of LED light (Life up to 25000 times), 3 sets of fluorescent light source. 3. Display the use time and numbers of every light source. 4. Adjustable illumination light. 5. Automatic switch among light sources, with metamerism function. 6. No warm-up time or flickering which insures quick and reliable color judgment. 7. Economic power consumption and low heat generation for high light efficiency. 8. Name of light source can be changed, easy to add light. 9. Metal box, durable in use.

Spectrophotometer Model: YS3010 Brand: 3NH - China

T60(5) Color light box 3NH - TILO

Introduction: ColorReader CR2 is developed by 3nh adopting advanced color sensor and rich performances APP with special multi-functional "Smart Button" and professionalized non-contact auto white board calibration incorporating micro colorimeter and cellphone color reader two in one. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food for color difference management. ColorReader CR2 is small and portable, which can identify and search color cards via smartphone APP. Users can use it to capture color inspiration anytime and anywhere.

Features: D / 8 geometric optical structure, conforming to CIE No.15, GB / T 3978, GB 2893, GB / T 18833, iso7724 / 1, ASTM e1164, din5033 teil7; Adopt combined LED light source with high life and low power consumption, including UV / excluding UV; Switchable 8mm & 4mm aperture( the flat/ tip measuring aperture can be switched easily, which is suitable for more tested sample) Dual optical path system, the optical resolution in the visible range is less than 10nm, which can measure the SCI and SCE spectrum of the sample at the same time; Accurate spectrum and lab data, used for color matching and accurate color transmission; High hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, 1000 line blazed grating, silicon photocell array detector with large photosensitive area, etc; USB / Bluetooth dual communication mode, wider adaptability; Super dirt resistant and stable standard white calibration board; Large capacity storage space, which can store more than 30000 pieces of test data 2/10 standard observer's angle, multiple light source modes, multiple surface color systems, meet various standards of chromaticity indicators, and the needs of various customers for color measurement; Camera locating position and Stabilizer cross measurement position; PC software has powerful function expansion;

75°High Precision Gloss Meter YG75 Introduction: 75 ° High Precision Gloss Meter YG75 is a professional instrument for measuring the gloss of an object surface. It uses the 75 ° angle measurement method to accurately measure the gloss of the product surface and is widely used in gloss measurement and quality inspection in paper, film, plastic and other industries. 75° High Precision Gloss Meter YG75 Product Features. 1. Good operating experience The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

NR60CP Portable Colorimeter Product Features 1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface. 2. Higher measurement stability and accuracy, Delta E ab<0.03. 3. More color spaces, various color indexes, extensive applicability. 4. Double locating: illuminating locating and cross locating 5. Configured with high-capacity rechargeable Li-ion battery 6. Built-in white plate parameters and physical white calibration board, easy to operate; 7. New integrating sphere optical path design, more stable measurement; 8. Measurement data can pass national metrology authentication. Application Industry NR60CP spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can connect to PC to achieve more extension functions.
