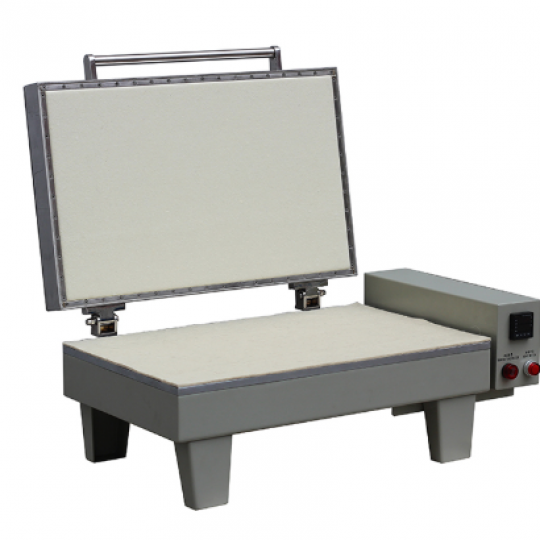

YT-7C Sheet Dryer

YT-7C Sheet Dryer

Brand Name:YANTE
Model:YT-7C
Place of Origin:China

Ứng dụng:

Product Details


Infrared radiation heating, The drying surface is precision mirror grinding, the upper cover is pressed down vertically, the pattern of uniform stress, uniform heating, shiny. It is a pattern drying equipment for pattern detection data high accuracy requirements

The mirror surface drying,the cover is breathable refractory fibre.

Digital temperature control, long time heating.

The heating element is whole size distribution,  to ensure even drying.


No.

Parameter item

Technical index

1

Copies Takes the Tube Diameter

200mm

2

The heating power

2.5KW/220V

3

Sheet thickness

0~15mm

4

Drying size

600mm×350mm

5

The net size

660mm×520mm×320mm
