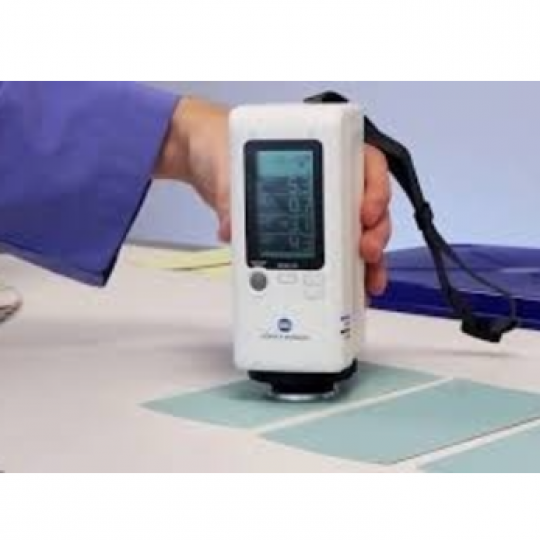

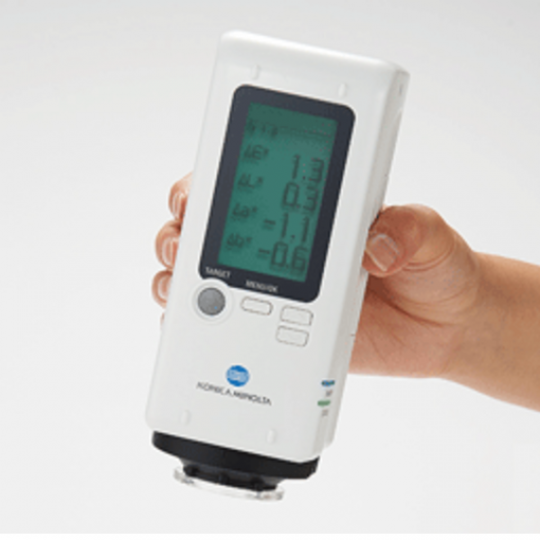

Máy đo Màu CR-10 Plus
|
Model
|
Color Reader CR-10 Plus
|
|---|---|
|
Illuminating/viewing geometry
|
8°:di (8°illumination angle/diffuse viewing: specular component included
(conforms to DIN 5033 Teil 7, JIS Z 8722 condition d, ISO 7724/1, CIE No. 15, ASTM E 116
|
|
Detector
|
Silicon photocells (6 pcs.)
|
|
Display range
|
L*: 1 to 100
|
|
Light source
|
Pulsed xenon lamps
|
|
Measurement time
|
Approx. 1 sec
|
|
Battery performance
|
Approx. 2,000 measurement at 10-sec. intervals when using alkaline-manganese batteries
|
|
Measurement area
|
Approx. ø8 mm, approx. ø5 mm (optional accessory
(*Optional ø5 mm mask does not conform to DIN 5033 Teil 7 and CIE N)
|
|
Repeatability
|
Standard deviation within ΔE*ab 0.1
(when a white calibration plate is measured 30 times at 10-second intervals)
|
|
Display languages
|
English, Simplified Chinese, Japanese
|
|
Interface
|
USB2.0
|
|
Observer
|
10° Standard Observer
|
|
Illuminant
|
D65
|
|
Display data
|
Color difference, average (up to 10 times), Pass/fail judgment
|
|
Color different formula
|
Δ (L*a*b*), Δ (L*C*H*), Δ E*ab (CIE 1976)
|
|
Data memory
|
Target data, Samples data(up to 1,000 in total)
|
|
Pass/fail item
|
Δ E*ab, Δ (L*a*b*), Δ (L*C*H*)
|
|
Operation temperature/ humidity range
|
0 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
|
|
Storage temperature/ humidity range
|
-20 to 40°C, relative humidity 85% or less (at 35°C) with no condensation
|
|
Power
|
4 AA-size alkaline dry batteries or nickel-metal-hydride rechargeable batteries, USB bus power or special AC Adapter
|
|
Size (W x H x D)
|
66 x 158 x 85 mm
|
|
Weight
|
420 g (without batteries)
|
