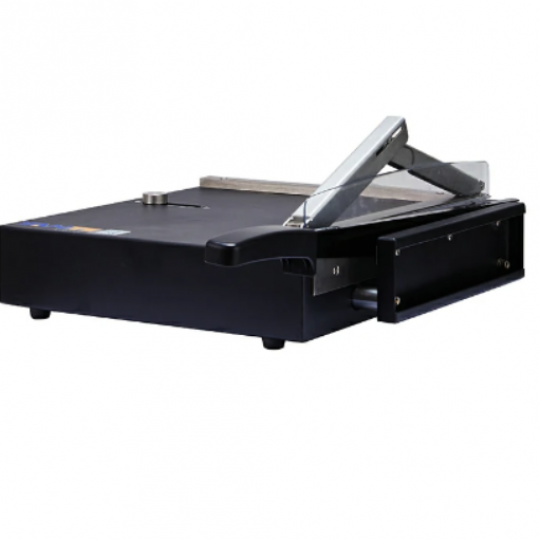

YT-TJD300 Adjustable Paper Cutter

YT-TJD300 Adjustable Paper Cutter

Brand Name:YANTE
Model:YT-TJD300
Place of Origin:China

Ứng dụng:

Adopt rail type, easy to operate

●  Using positioning pins to locate the distance, high accuracy

●  There is a dial, which can cut a variety of samples

●  The instrument is equipped with a compression device to reduce errors

executive standard.jpg

QB/T1671

technical parameters.jpg

No.

Parameter item

Technical index

1

Sampling size range

Maximum length 300mm, maximum width 320mm

2



Sampling size error

±0.10mm(15mm)、±0.20mm(38mm)

±0.30mm(63mm)、±0.50mm(other size)

4

Sampling thickness range

≤1.0mm

5

Incision parallelism

≤0.1mm

6

Dimension

515 ×380×210 mm

7

Net Weight

≤13kg
