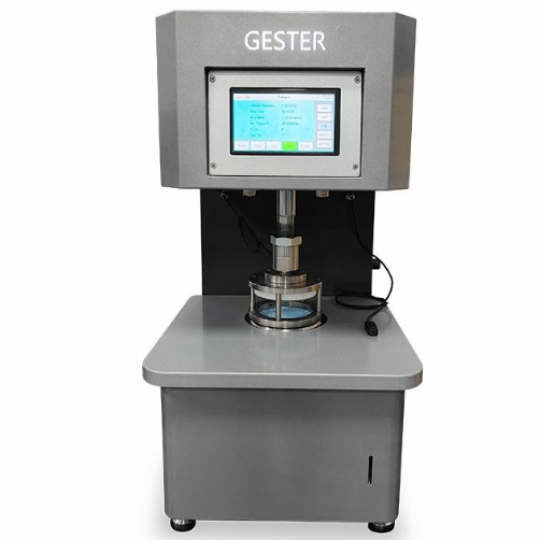

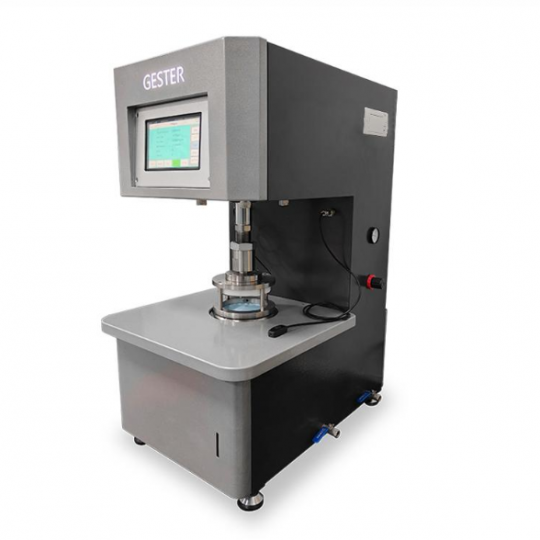

Hydrostatic Head Tester for Textile GT-C26A

Hydrostatic Head Tester for Textile GT-C26A

Hydrostatic Head Tester for Textile
Model: GT-C26A
Brand: GESTER - CHINA
Product Introduction
Application:
- Digital Hydrostatic Head Tester is used to testing the waterproof properties of fabrics through waterproofing work such as canvas, coated fabrics, hood fabric, tarpaulin, rain-proof fabrics and geotextile.
- Hydrostatic head test standard:
AATCC 127 Option 2, ISO 811, ISO 1420, GB/T 4744, GB/T 9082, FZT 01004 , DIN 53886 , EN 20811, EN 13726-3, EN 1734, BS 2823, WSP 80.6, JIS L1092-7.1.1 Method A

Ứng dụng:

Hydrostatic Head Tester for Textile
Model: GT-C26A
Brand: GESTER - CHINA

Dimensions
Feature

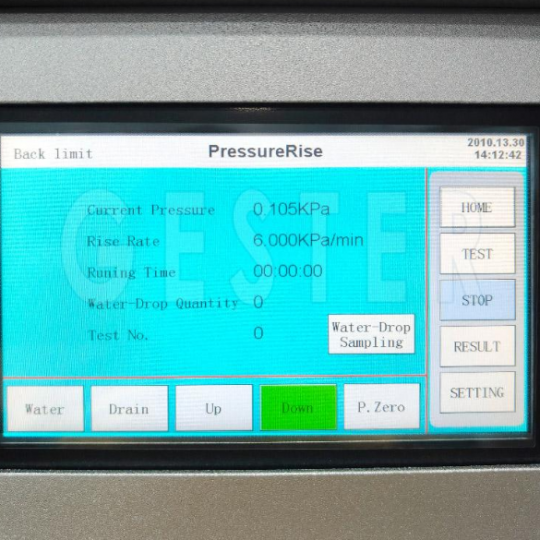

  1. Hydrostatic Head Tester Touch-Screen display with English menu.
  2. Internally installed water tank design and original water pressure balance system makes the rate of rise stable and exact.
Key Specifications
Model
GT-C26A
Testing range
500pa-200kpa
Water pressure increase rate
1kpa-30kpa
Accuracy
0.2%F.S
Clamping method
Pneumatic clamping
Specimen test area
100cm2
Testing mode
1) P. Rise
2) Const P & Timing
3) Const P & Time
4) Water Penetration
5) Fatigue
Testing unit
KPa, PSI, mmH2O, cmH2O, mbar, mmHg
Power supply
AC 220V 50/60HZ
Dimension
600 x 450 x 640mm (L x W x H)
Weight
60 kg
