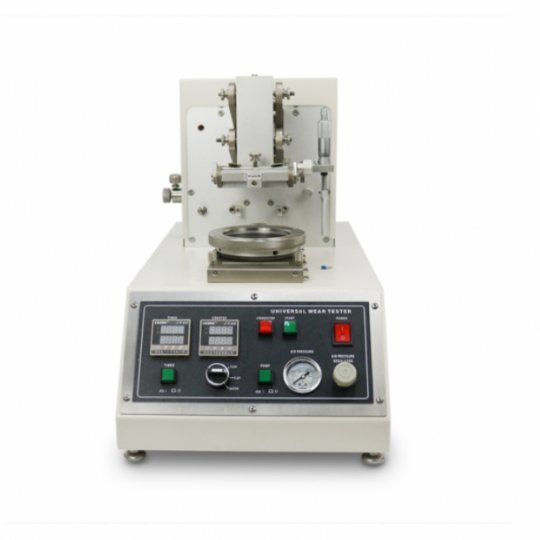

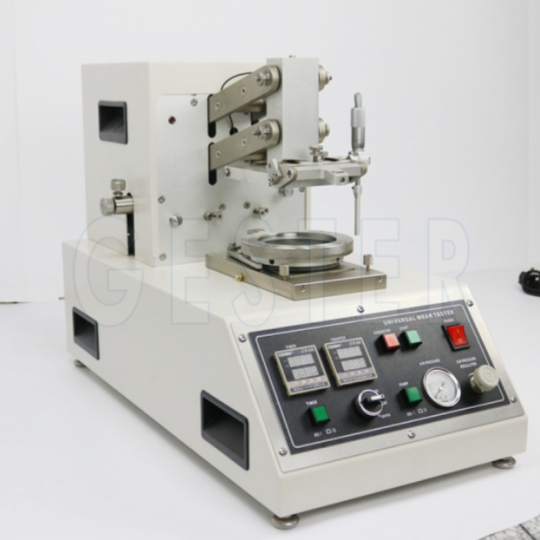

Universal Wear Tester Stoll Quartermaster GT-C15-2

Universal Wear Tester Stoll Quartermaster GT-C15-2

Universal Wear Tester Stoll Quartermaster
Model: GT-C15-2
Manufacturer: Gester - China
The Universal Wear Tester Stoll Quartermaster is to determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials.

Ứng dụng:

Universal Wear Tester Stoll Quartermaster
Model:  GT-C15
Manufacturer: Gester - China
Application:

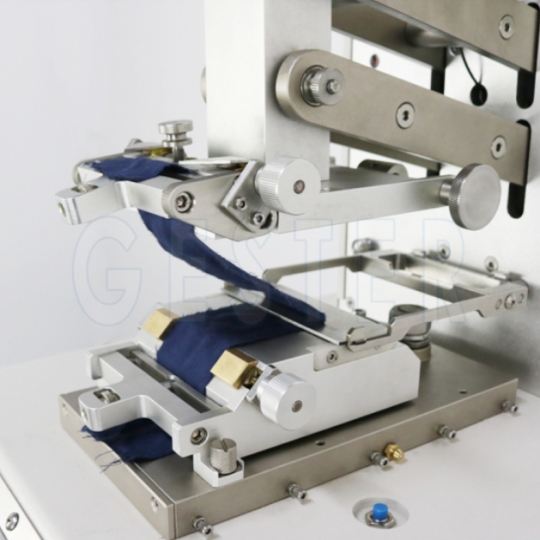

Universal Wear Tester (UWT) is used to determines the wear and abrasion resistance of fabric used in clothing, footwear and industrials. Supplied with surface abrasion head (inflated diaphragm method, flex abrasion head, depth abrasion test device, flat abrasion (frosting) and pilling test device as well as necessary weights and initial supply of abrasive. Fitted with built-in timer and mechanical cycle counter.
Feature:
1. This quartermaster universal wear tester equipped with accurate loop counter and timer. Digital counter can record the cycle index when the sample ruptured. And testers can preset the counter to stop before sample rupturing. Count down model can also be used in count the cycle index.
2. To ensure accuracy of the rubber membrane when doing the surface abrasion test, this machine equipped with accurate pneumatic pressure control system.
3. Stoll Quartermaster Universal Wear Tester: test can be done automatically which can ensure not only the accuracy of repeat test result but also save operator’s time.
Specifications:
Speed: 115±10 2 strokes/min
Test stroke: 25mm
Counter display: LCD
Power: AC 220V 50/60 Hz
Dimensions: 480x360x715 (LxWxH)
Weight: 50kg
Standard: ASTM D3885, D3886
