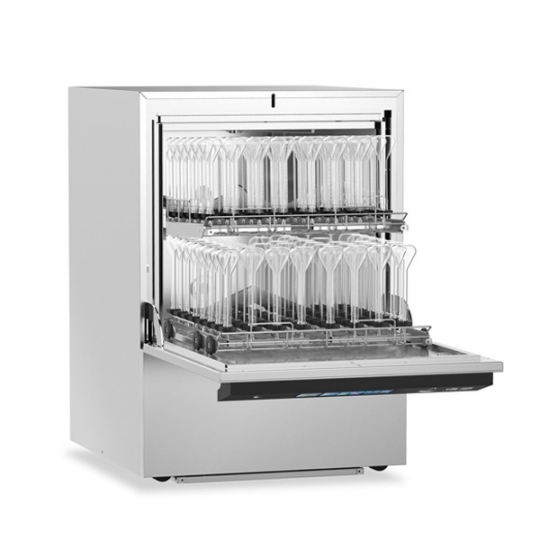

LW190 Plus Laboratory glassware washer

LW190 Plus Laboratory glassware washer

LW190 Plus Laboratory glassware washer
Model: LW190
EURPING - China
Microcomputer chip control technology (non-PLC) with 8.8 inch full color OLED LCD touch screen,including 30 standard procedures and 120 self-defined procedures.
LW190 Plus laboratory glassware washer adopt variable frequency soft-start function control the circulation pump from 0-400L/min.Pipeline pressure monitor monitors the pressure of the main pipeline in real time.
LW190 Plus adopts the back water supply method for basket and rack.
Electronic safety lock, EULA electric door opening and closing technology, the experimenter can set the door opening temperature limit.
Water heating over temperature protection, hot air heating over temperature protection, water pump over temperature protection, fan over temperature protection.
Monitoring water leakage,The instrument will stop working if water leakage;
The instrument will recovery automatically after water cut and memory if the power cut off;
The instrument have the remind function when the cleaning agent is lacking;
Multi-layer filtration system: prevent debris from entering the pipeline and causing blockage;

Ứng dụng:

LW190 Plus Laboratory glassware washer
Model: LW190
EURPING - China
Technical parameter
Electrical Configuration  220 V   50 Hz/60Hz
Max power  5 kW
Control panel  touch screen  8.8inches
Display content execution parameters
Standard washing program  30
Editable washing program  120
Printer interface:RS232
Circulation pump  0-500 L/min
Cleaning Heating power  4 kW
Pure water booster pump
peristaltic pump detergent dispenser
The number of peristaltic pump  2
basket layers:2
Drying unit:Pipeline injection drying
Drying power 3[kW]
Temperature selection(℃)RT-120
Time selection (min)    0-300
Automatic door lock
Spray arm speed and line pressure sensing system
Dual temperature monitoring system
Over-temperature protection
Overflow protection
Sound prompt after cleaning end
External dimensions (mm)  670 L X 691 W X 940 H
Inner dimensions   (mm)   546 L X 575 W X 607 H   185L
