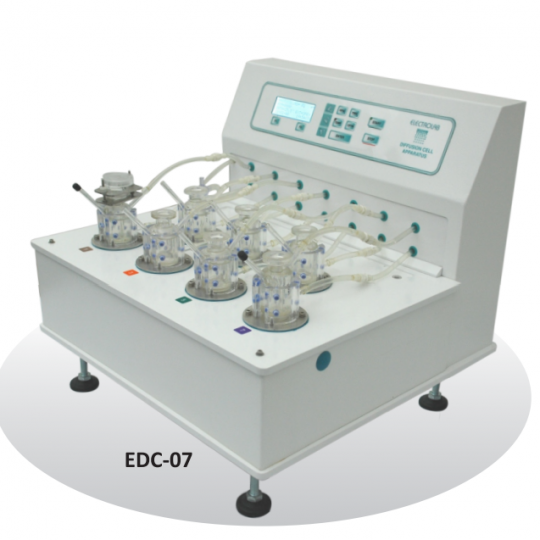

Diffusion Cell Apparatus Model EDC-07

Diffusion Cell Apparatus Model EDC-07

Diffusion Cell Apparatus
Model EDC-07
Electrolab
7 station apparatus
Ideal for transdermal and topical products
10 programmable protocols with 12 sample intervals
Ergonomically designed to save bench space
Vertical diffusion cells available in 5, 7.5, 12, 15 ml and 20 ml sizes
Specially designed for academic instructions
Simultaneous timer function allows the sampling interval time to be cumulative
The machine is equipped with seven diffusion cells
30-1000 RPM Settable
External temperature sensor for validating the media temperature

Ứng dụng:

Diffusion Cell Apparatus
Model EDC-07
7 station apparatus
Ideal for transdermal and topical products
10 programmable protocols with 12 sample intervals
Ergonomically designed to save bench space
Vertical diffusion cells available in 5, 7.5, 12, 15 ml and 20 ml sizes
Specially designed for academic instructions
Simultaneous timer function allows the sampling interval time to be cumulative
The machine is equipped with seven diffusion cells
30-1000 RPM Settable
External temperature sensor for validating the media temperature
Product code: M.S. : 1020100
                      S.S. : 1040100
Physical parameter:
Number of cells : 7
No. of protocols : 10 maximum
Sampling intervals : 12
Drive (No. of motor): 1
Temperature range Control accuracy: 30.0°C to 40.0°C / + 0.1’C
Circulating pump supply: 230 V, AC, 50 Hz
Flow rate:  15 L / min
Printer interface: Serial port
Power supply: 230 VAC, 50 Hz or 110 VAC, 60 Hz
Dimensions :(L x W x H) 450 mm x 425 mm x 365 mm
