Binocular microscope B-292
-
48
-
0765 259 545

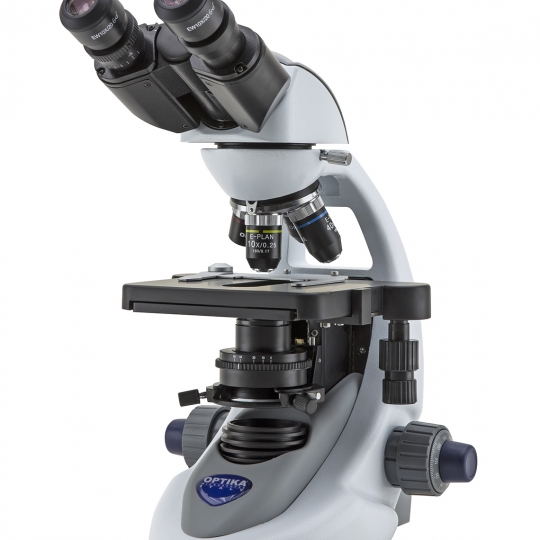

Binocular microscope
Model: B-292
Manufacturer: Optika – Italy
Features and specifications
- The microscope is widely used in the field of education and laboratories. Exquisite design, compact and highly stable, transmitted light observation mode.
Model: B-292
Manufacturer: Optika – Italy
Features and specifications
- The microscope is widely used in the field of education and laboratories. Exquisite design, compact and highly stable, transmitted light observation mode.
Binocular microscope
Model: B-292
Manufacturer: Optika – Italy
Manufacturer: Optika – Italy
Features and specifications
- The microscope is widely used in the field of education and laboratories. Exquisite design, compact and highly stable, transmitted light observation mode.
- Maximum magnification 1000 times
- Light source: X-LED white light source, with light intensity control knob located on the left side of the microscope, lamp power 3.6W, equivalent to 50W Halogen bulb, average life is 50,000h
- The microscope is widely used in the field of education and laboratories. Exquisite design, compact and highly stable, transmitted light observation mode.
- Maximum magnification 1000 times
- Light source: X-LED white light source, with light intensity control knob located on the left side of the microscope, lamp power 3.6W, equivalent to 50W Halogen bulb, average life is 50,000h
- Observation mode: bright background
- Focal length: coaxial (0.002mm division) with upper limit, preventing contact between objective and specimen, coaxial focal length adjustment
- Specimen stage: double slide table, size 150x 139mm, moving in X-Y with displacement range 70x 30, slide holder, X-type clamp, ruler on both axes, accuracy 0.1mm
- Objective lens mounting head: 4 objective lens mounting positions rotated on the rotating ring.
- Observation head: 2-eye type, inclined 30o and can rotate 360o, Diop adjustment on the left eye, adjustment range 48 - 75mm
- Eyepiece: wide-field WF10X/20 eyepiece
- Objective lens:
+ Achromatic flat objective lens with tube length 160mm, with the following types:
- Focal length: coaxial (0.002mm division) with upper limit, preventing contact between objective and specimen, coaxial focal length adjustment
- Specimen stage: double slide table, size 150x 139mm, moving in X-Y with displacement range 70x 30, slide holder, X-type clamp, ruler on both axes, accuracy 0.1mm
- Objective lens mounting head: 4 objective lens mounting positions rotated on the rotating ring.
- Observation head: 2-eye type, inclined 30o and can rotate 360o, Diop adjustment on the left eye, adjustment range 48 - 75mm
- Eyepiece: wide-field WF10X/20 eyepiece
- Objective lens:
+ Achromatic flat objective lens with tube length 160mm, with the following types:
+ E-Plan 4X, N.A. 0.10, W.D. 15.2 mm
+ E-Plan 10X, N.A. 0.25, W.D. 5.5 mm
+ E-Plan 40X, N.A. 0.65, W.D. 0.45 mm
+ E-Plan 100X, N.A. 1.25, W.D. 0.13 mm (oil bath)
+ All objectives are treated against mold
- Condenser: Abbe condenser, N.A. 1.25
- Dimensions: H370 mm x W235 mm x D290 mm
- Weight: 6.5 kg
+ E-Plan 10X, N.A. 0.25, W.D. 5.5 mm
+ E-Plan 40X, N.A. 0.65, W.D. 0.45 mm
+ E-Plan 100X, N.A. 1.25, W.D. 0.13 mm (oil bath)
+ All objectives are treated against mold
- Condenser: Abbe condenser, N.A. 1.25
- Dimensions: H370 mm x W235 mm x D290 mm
- Weight: 6.5 kg
