Monocular Microscope B-61
-
212
-
0765 259 545

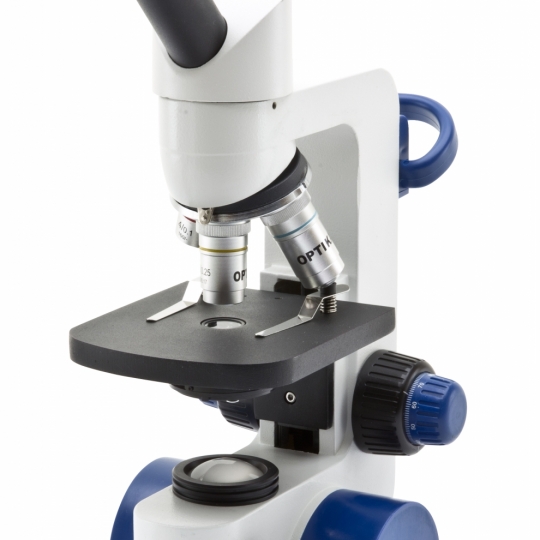

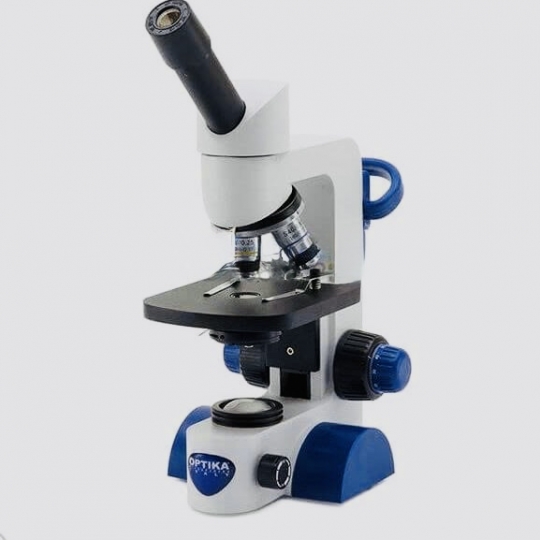

Monocular Microscope
Model: B-61
Manufacturer: Optika - Italy
Contact for quotation: 0765 259 545
Outstanding Features of Optika Microscope
B-61 monocular microscope, battery operated, compact basic design, ideal for students and mainly general applications, deployed for students to get acquainted with in primary schools, primary schools, .. or applications in agriculture, aquaculture, with achromatic objective lens with maximum magnification of 400X, FN18 microfield, finite optical system, coaxial focus, fixed mechanical specimen clamp. 1W LED light source used with rechargeable battery.
Model: B-61
Manufacturer: Optika - Italy
Contact for quotation: 0765 259 545
Outstanding Features of Optika Microscope
B-61 monocular microscope, battery operated, compact basic design, ideal for students and mainly general applications, deployed for students to get acquainted with in primary schools, primary schools, .. or applications in agriculture, aquaculture, with achromatic objective lens with maximum magnification of 400X, FN18 microfield, finite optical system, coaxial focus, fixed mechanical specimen clamp. 1W LED light source used with rechargeable battery.
Monocular Microscope
Model: B-61
Manufacturer: Optika - Italy
Model: B-61
Manufacturer: Optika - Italy
Technical specifications
- Observation type: bright field
- Main body: cast aluminum, vertical, with handle
- Observation head:
+ 1-sided type
+ Observation angle inclined: 45°
+ Rotatable head: 360°
+ Eyepiece tube diameter: 23mm
- Eyepiece:
+ 10X type, 18mm field of view
- Objective lens tray
+ 4-position type
+ Reverse rotation: yes
+ 2-way movement: yes
+ Positioning bearing rotation: yes
+ Objective lens mounting thread type: RMS internal thread
- Main body: cast aluminum, vertical, with handle
- Observation head:
+ 1-sided type
+ Observation angle inclined: 45°
+ Rotatable head: 360°
+ Eyepiece tube diameter: 23mm
- Eyepiece:
+ 10X type, 18mm field of view
- Objective lens tray
+ 4-position type
+ Reverse rotation: yes
+ 2-way movement: yes
+ Positioning bearing rotation: yes
+ Objective lens mounting thread type: RMS internal thread
- Objective lens:
+ Microfield 18mm
+ Optical length: 160
+ Anti-mold
+ Focal distance: 45mm
+ Magnification: 40-400X
4x/0.19, W.D. 10.6mm
10x/0.25, W.D. 7.0mm
40x/ 0.65, W.D. 0.5mm
- Specimen clamp
+ Fixed type
+ Size 120x100mm
+ Material: scratch-resistant specimen
+ Specimen clamp: available
+ Number of specimens placed on the clamp: 01
- Fixed condenser: NA 0.65, designed with iris diaphragm
+ Microfield 18mm
+ Optical length: 160
+ Anti-mold
+ Focal distance: 45mm
+ Magnification: 40-400X
4x/0.19, W.D. 10.6mm
10x/0.25, W.D. 7.0mm
40x/ 0.65, W.D. 0.5mm
- Specimen clamp
+ Fixed type
+ Size 120x100mm
+ Material: scratch-resistant specimen
+ Specimen clamp: available
+ Number of specimens placed on the clamp: 01
- Fixed condenser: NA 0.65, designed with iris diaphragm
- Focusing system:
+ Coaxial coarse and fine adjustment
+ Coarse travel distance: 23mm
+ Fine travel distance: 1.2mm
+ Fine adjustment step: 100 steps
+ Fine adjustment resolution: 12µm
+ Has upper limit point: yes
- Light source
+ LED: 1W
+ Light source adjustment: manual (potentiometer)
+ LED life >65,000 hours
+ Light intensity: 6,300K
+ Maximum required power: 1.5W
- Power source used: 03 rechargeable Ni-MH batteries 3x AAA, battery life 8 hours, battery charger uses 5Vdc, 500mA power adapter, input 220V/ 50Hz
- Dimensions HxWxD: 330x135x235mm
- Weight: 2.3kg
+ Coaxial coarse and fine adjustment
+ Coarse travel distance: 23mm
+ Fine travel distance: 1.2mm
+ Fine adjustment step: 100 steps
+ Fine adjustment resolution: 12µm
+ Has upper limit point: yes
- Light source
+ LED: 1W
+ Light source adjustment: manual (potentiometer)
+ LED life >65,000 hours
+ Light intensity: 6,300K
+ Maximum required power: 1.5W
- Power source used: 03 rechargeable Ni-MH batteries 3x AAA, battery life 8 hours, battery charger uses 5Vdc, 500mA power adapter, input 220V/ 50Hz
- Dimensions HxWxD: 330x135x235mm
- Weight: 2.3kg
