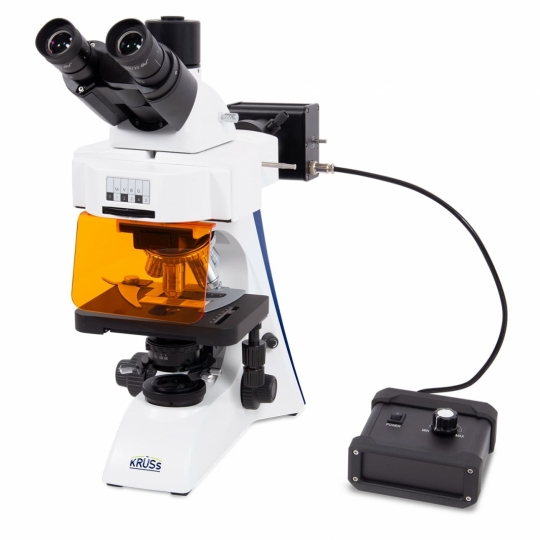

Trinocular microscope MBL4000-T-F-LED

Trinocular microscope MBL4000-T-F-LED
Technical specifications:
- Microscope head: Siedentopf trinocular head, inclined angle 30°, rotated 360°, adjustable distance between eyes from 48 mm - 76 mm.
- Eyepiece: WF10X/22 mm eyepiece with diopter compensation function.
- Objective lens rotation: 5 positions.
- Objective lens: 10X/20X/40X/100X phase contrast objective lens.
- Mechanical sample stage size 182 mm x 140 mm. With 0.1 mm scale. Movement range: 77 mm x 52 mm.
- Condenser: ABBE condenser with two lenses, NA 1.25, with light intensity adjustment function, aperture diaphragm and height adjustment.
- Fluorescent illumination: 3W epi-fluorescent LED (6-hole disc, B&G filter).
- Fluorescent filter: 6-position filter wheel, equipped with B & G filters (B for 470 nm, G for 500 nm – 550 nm).
- Body: Made of metal with coaxial coarse/fine adjustment within 25 mm.
- Precision of fine adjustment: 2 µm.
- Illumination system: 5W LED with bright field diaphragm and brightness control. With color filter tray.
- Protection standard: Protection type: IP20.
- Dimensions (W x H x D): 230 mm x 420 mm x 390 mm (MBL4000-T-LED; MBL4000-T-PH-LED; MBL4000-T-B-LED).
- Weight
- Ambient temperature: 0-40°C
- Ambient humidity: 10 - 90%
- Operating voltage: External power adapter: 100-240 VAC, 50/60 Hz.
