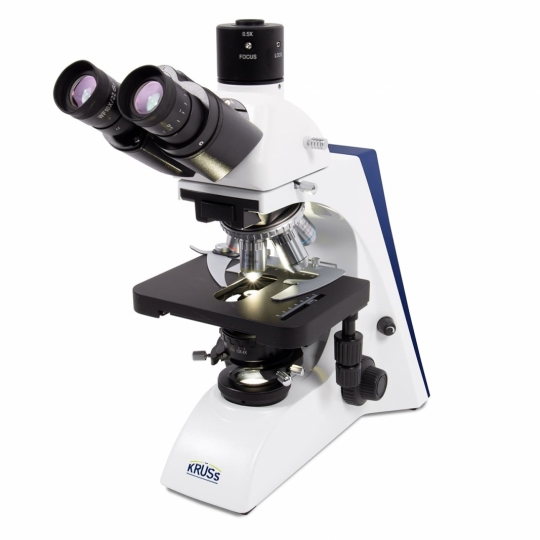

Trinocular microscope MBL4000-T-LED

Trinocular microscope MBL4000-T-LED
Specifications:
- Microscope head: Siedentopf trinocular head, inclined angle 30°, rotated 360°, interpupillary distance adjustment from 48 mm – 76 mm.
- Eyepiece: WF10X/22 mm eyepiece with diopter compensation function.
- Objective mount: 5 positions.
- Objective lens: 4X, NA 0.1 / 10X, NA 0.25 / 20X(S), NA 0.40, / 40X, NA 0.65 /100X (S, oil), NA 1.25
>>>Exclusive for MBL4000-T-PH-LED & MBL4000-T-PH-F-LED: Phase contrast objective 10X/20X/40X/100X.
>>>For MBL4000-T-B-LED only: 100X objective (S, oil) with iris diaphragm, NA 1.25.
- Mechanical stage 182 mm x 140 mm. With 0.1 mm scale. Movement range: 77 mm x 52 mm.
- Condenser: ABBE dual lens condenser, NA 1.25, with light intensity control, aperture diaphragm and height adjustment.
>>For MBL4000-T-B-LED only: Darkfield condenser, NA 0.83 – 0.91.
- Body: Made of metal with coaxial coarse/fine adjustment within 25 mm.
- Precision of fine adjustment: 2 µm.
- Illumination system: 5W LED lamp with brightfield diaphragm and brightness control. With color filter tray.
- Fluorescent illumination: 3W epi-fluorescent LED (6-hole disc, B&G filter).
- Fluorescent filter: 6-position filter wheel, equipped with B & G filter (B for 470 nm, G for 500 nm – 550 nm).
- Protection standard: Protection type: IP20.
- Dimensions (W x H x D): 230 mm x 420 mm x 390 mm (MBL4000-T-LED; MBL4000-T-PH-LED; MBL4000-T-B-LED).
>>>230 mm x 490 mm x 530 mm & 150 mm x 80 mm x 220 mm (MBL4000-T-F-LED; MBL4000-T-F-PH-LED).
- Weight
10 kg (MBL4000-T-LED; MBL4000-T-PH-LED; MBL4000-T-B-LED).
15 kg (MBL4000-T-F-LED; MBL4000-T-F-PH-LED).
- Ambient temperature: 0-40°C
- Ambient humidity: 10 - 90%
- Operating voltage: External power adapter: 100-240 VAC, 50/60 Hz.
