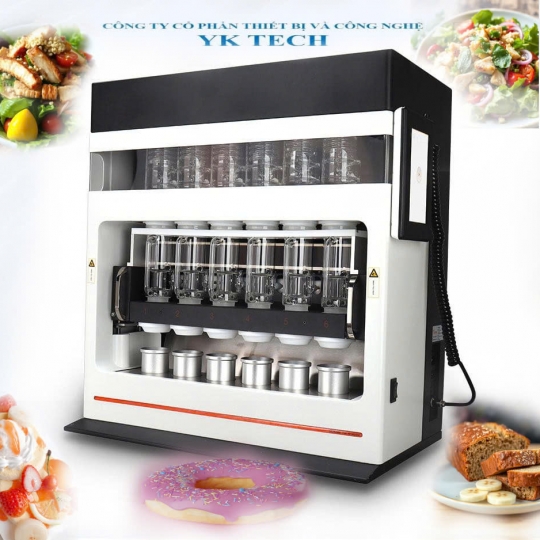

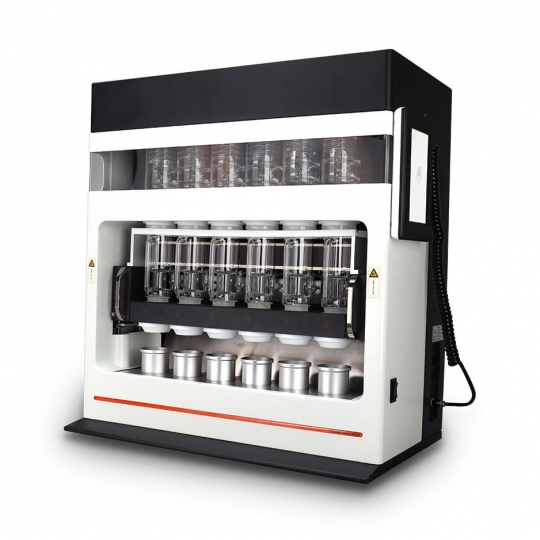

Automatic Soxhlet Extractor SOX606

Automatic Soxhlet Extractor SOX606

Automatic Soxhlet Filling Machine SOX606
Model: SOX606
Manufacturer: Hanon
Origin: China
SOX606 Automatic Soxhlet Extractor, designed based on the Soxhlet extraction principle with weight method to determine the fat content. It has five extraction methods to meet different demands from the customer. The whole metal heating module, heating up fast, good effect, low power consumption; access to all-round water temperature, flow control, environmental protection more economical; built-in ether leak detection device to ensure experimental safety. It is widely used in agricultural/ food /chemical /environment and other areas, especially for the drug, soil, sludge, cleaner, and other substances in the extraction of soluble organic compounds.

Ứng dụng:

Automatic Soxhlet Filling Machine SOX606
Model: SOX606
Manufacturer: Hanon
Origin: China

Features & Advantages
Apply to all organic solvents to satisfy all demands.
Automatic Soxhlet standard method, it customized by glass and PTFE, which can block all impurities and possess high rate of accuracy.
One-click manipulation for start and pause, that makes operation with high proficiency.
The analyzer allows its controller to adsorb on any surface made of iron.
Vertical screen, more humanization.
In-built 5 methods of extraction, handy operation.
Preset common reagent options, one-click manipulation for repeated trials
The overall heating module, that possesses features of warming faster, favorable effect and low power consumption.
Full temperature and flow control for environment and economy.
In-built ether leak detection device to ensure experiment safety.
Efficient solvents recovering system for reducing experimentation cost.

Technical data:

Temperature range

Room temperature +5℃~ 300℃

Measuring range

0.1 ~ 100%

Temperature accuracy

±1℃

Reproducibility

Relative error 1%

Sample weight

0.5 ~ 15g

Capacity per batch

6pcs/batch

Solvent cup volume

150mL

Solvent recovery

≥85%

Controller

External via cable

Power supply

220VAC±10%, 50Hz

Display

7 inches color touch screen

Power

2.6KW

Dimensions

650mm×380mm×720mm

Net Weight

50Kg
