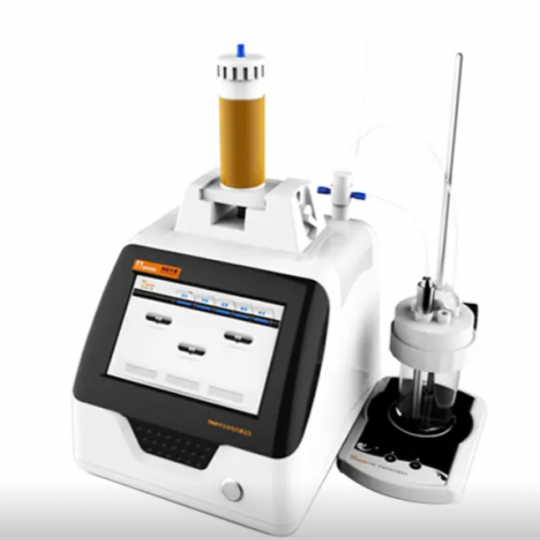

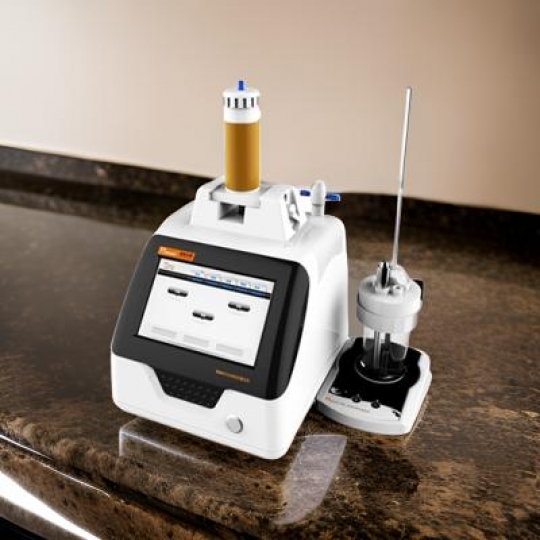

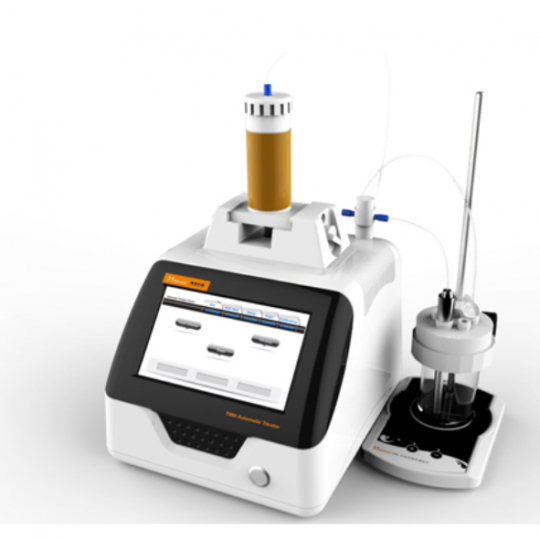

Automatic Titrator T860
Automatic Titrator T860
Model: T860
Manufacturer: Hanon
Origin: China
Characteristics:
Zero-dead volume solenoid valve,hanging easily for PTFE burette.
Ultrathin stirring device, adopt coil realize magnetic Stir.
Accuracy closed-loop control for volume.
High-accuracy burette accurate to 0.005mm.
Simple design, discrete stirring unit, detachable easily.
LCD touch screen.
Wide operating voltage range 110~240V, apply to global client.
Specification
Measurement mode |
MEAS |
pH/mV |
CAL |
pH calibration |
|
SET |
End point setting |
|
MET |
monotonic titration |
|
Burette |
Volume |
15mL/25mL |
Stirring |
Mode |
magnetic |
Titration cup volume |
100mL |
|
Electrode |
mv/pH |
1 x BNC |
Reference |
1 |
|
PT1000 |
1 x NTC |
|
Communication |
USB |
1 |
Stirrer |
1 |
|
Power |
1 |
|
Printer |
1 |
Technical
mV/pH |
Measurement range |
±1,999 mV 0.00~14.00 pH |
Resolution: |
0.1 mV / 0.01 pH |
|
Error |
0.2 mV / 0.02pH |
|
PT1000 |
Measurement range |
0-100℃ |
Resolution: |
0.1 ℃ |
|
Error |
0.2 ℃ |
|
Burette |
15 mL tolerance |
±0.025mL |
25 mL tolerance |
±0.035mL |
|
Dosing Repeatability |
0.20% |
|
mV Repeatability |
≤0.2mV |
|
Controller |
Display |
7'' inch touch screen |
Information |
Weight |
10 Kg |
Power |
110-240V,50/6 |
