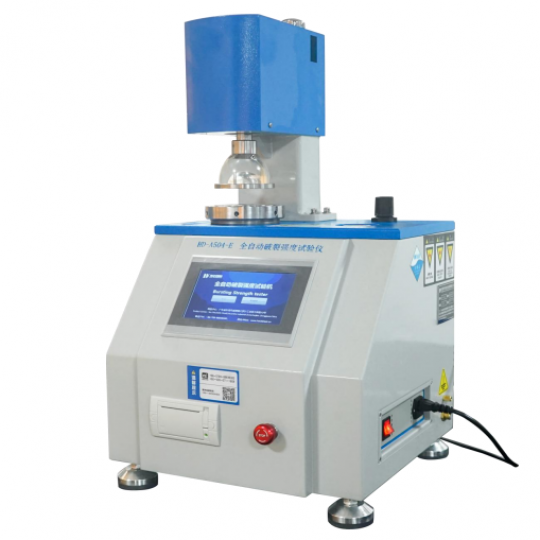

HD-A504-E AUTOMATIC BURST STRENGTH TESTER(HighPressure
-
151
-
0765 259 545
DESIGN STANDATD
JIS-L1004, JIS-L1018, JIS-L1031, JIS-K6328, JIS-P8131, JIS-P8112, ASTM-D2210, TAPPI T403, ISO2759-2001, GB/T1539, QB/T 1057
GENERL SPECIFICATIONS
Packaging Dimensions: (W x D x H) 520 x530 x 930mm (approx.)
Power Supply Source: Single-phase, 220V, 50Hz (can be appointed)
Gross Weight: 80kg (approx.)
JIS-L1004, JIS-L1018, JIS-L1031, JIS-K6328, JIS-P8131, JIS-P8112, ASTM-D2210, TAPPI T403, ISO2759-2001, GB/T1539, QB/T 1057
GENERL SPECIFICATIONS
Packaging Dimensions: (W x D x H) 520 x530 x 930mm (approx.)
Power Supply Source: Single-phase, 220V, 50Hz (can be appointed)
Gross Weight: 80kg (approx.)
STANDARD FEATURES
Item High pressure(For board)
Capacity 250kPa～5600kPa
Clamping force 600~1200 KPа
Unit kPa, Lbs/in², kgf/cm² Resolution 0.1kPa
Sensing Method Pressure Transmitter
Operation Method Touch Screen Control
Ring Material Stainless Steel SUS304
Inner diameter of clamp ring
upper clamp ring: Φ31.5±0.1mmlower clamp ring: Φ31.5±0.1mmMaximum Stroke 25mm (without clamp)
Pressurization Speed 170±15ml/min
Dimension (L×W×H) 400mmx400mmx760mm (approx.)
Weight Appro. 50kg
Power Single-phase, 220V, 60 Hz
Hydraulic oil 100% silicone oil
Required Air Source ≥0.6Mpa (provide by customer self)
Accessories
one piece higher pressure rubber film, one piece wrench, 10 pieces higher pressure correction sheet, one bottle silicon oil, one piece
Product Similar
Salt Spray Chamber
Model: HD-E808
Manufacturer: Hiada - China
Contact for quotation: 0765 259 545
Product Description:
Salt Spray Test Chamber adapted to the surface treatment of various materials , including paint , electroplating , organic and inorganic coating , anode processing , antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products
0765 259 545
Salt Spray Chamber for Corrosion Testing
Model: HD-E808-160
HAIDA - CHINA
Product Description:
Salt Spray Test Chamber for Corrosion Resistance is ideal for testing the resistance to salt spray corrosion of some products by measuring and comparing similar materials, their usability quality.Salt spray chamber is applicable to test salt spray corrosion resistance of such products as parts, electronic components, protective layer of metallic material and industrial products
0765 259 545
ECT Sample cutter
Model: HD-A514
Manufacturer: Haida - China
Cutting the specimen width : 25, 100mm
Cutting depth : < 8mm
Dimensions : 550x450x160mm
Weight : 36kg
0765 259 545
Corrosion test chamber
Model: HD-E808-60
Manufacturer: Haida - China
Product Description
Corrosion Resistance Tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.suitable for parts, electronic components, metal materials, protective coatings and industrial products
0765 259 545
Compression testing machine
Model: HD-A513-E
Haida - China
Product description
carboard ring crush tester can do a full range of tests, which include Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc.
0765 259 545
Single Drop test machine
Model: HD-A520
Haida - China
FEATURES
1. Outside material: advanced paint coat
2. Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring+electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automaticreturn back + digital alto-meter +encoder + hydraulic pressure buffering device)
3. Control system: adopting electromagnet sensor control, the interface is easy to operate, high degreeautomatic control
4. Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
0765 259 545
The environmental test chamber with programming Haida HD-E702-150
0765 259 545
HD-A502S-1200 Box Compression Strength Tester
Model: HD-A502S-1200
Carton Compression Tester is mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.
DESIGN STANDARD : ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
0765 259 545
The Packaging Impact Testing Device HAIDA HD-A523
0765 259 545
