HD-A502S-1200 Box Compression Strength Tester
-
385
-
0765 259 545

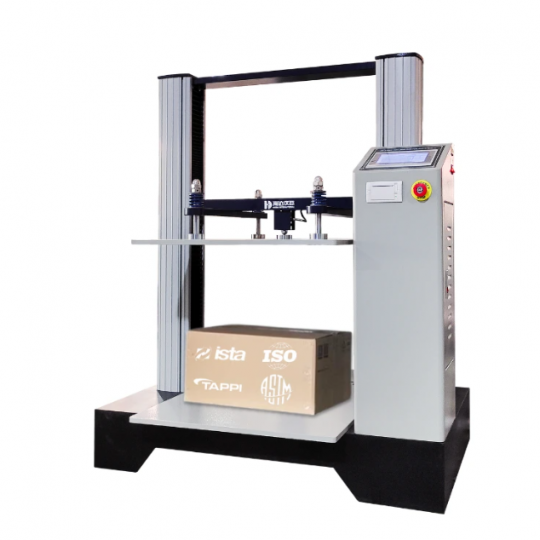

HD-A502S-1200 Box Compression Strength Tester
Model: HD-A502S-1200
Carton Compression Tester is mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.
DESIGN STANDARD : ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
Model: HD-A502S-1200
Carton Compression Tester is mainly used in the various types of secondary normal size corrugated carton compressive strength test or other material made of compressive strength of packaging container FCL compressive strength test and test, such as food and beverage instant noodles packing, cosmetic packaging, beer packing, cereals and oil and so on the packaging. The instrument control accuracy is high, the development of advanced technology, for the present domestic the most cost-effective one universal carton compression tester.
DESIGN STANDARD : ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
HD-A502S-1200 Box Compression Strength Tester
Model: HD-A502S-1200
Model: HD-A502S-1200
Haida - China
MACHINE PRODUCTION
HD-A502S-1200 Box Compression Tester is specialized for testing the compression performance of cartons. It
is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 2000*1400*1900mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 1065kg
STANDARD FEATURES:
Max. Force : 2000 kg (20KN)
Load cell : 1 load cell for highest accuracy
Control system : Windows 10, RS-232 interface
Motor : Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading : kgf, Ibf, N, KN, T etc
Load cell Resolution : 1/250,000
Load Precision : within ±0.5%
Effective test area : 1000*1200*1000mm
Test speed : 0.01~200mm/min
Software : HD-002-A(Independent R&D)
Data display : Load, displacement, speed, loading rate and elapsed time
Safety features : E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
DESIGN STANDARD : ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
MACHINE FEATURES:
1. Clear software interface with obvious icons, can real-time display of each test data and can monitor the test
process at any time
2. Multi-purpose - Deformation under defined load, Load under defined deformation, Maximum load and
Stacking test
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency. Low failure, long life and low noise
4. Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault
prompts to ensure the safety of users' operations
5. Chinese-English bilingual test system to meet more needs;
APPLICATIONS:
This instrument can make compression tests of packages (boxes) or packing and determine their piling up
resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).
The Compression Testers can operate in five ways:
1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and
beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and
beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke
HD-A502S-1200 Box Compression Tester is specialized for testing the compression performance of cartons. It
is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages. Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters, paper boxes, paper cans, container drums and etc.
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 2000*1400*1900mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 1065kg
STANDARD FEATURES:
Max. Force : 2000 kg (20KN)
Load cell : 1 load cell for highest accuracy
Control system : Windows 10, RS-232 interface
Motor : Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading : kgf, Ibf, N, KN, T etc
Load cell Resolution : 1/250,000
Load Precision : within ±0.5%
Effective test area : 1000*1200*1000mm
Test speed : 0.01~200mm/min
Software : HD-002-A(Independent R&D)
Data display : Load, displacement, speed, loading rate and elapsed time
Safety features : E-Stop, Over-load protection, Upper and lower limit switches, Load sensor with automatic retreat
DESIGN STANDARD : ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
MACHINE FEATURES:
1. Clear software interface with obvious icons, can real-time display of each test data and can monitor the test
process at any time
2. Multi-purpose - Deformation under defined load, Load under defined deformation, Maximum load and
Stacking test
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency. Low failure, long life and low noise
4. Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault
prompts to ensure the safety of users' operations
5. Chinese-English bilingual test system to meet more needs;
APPLICATIONS:
This instrument can make compression tests of packages (boxes) or packing and determine their piling up
resistance (for storage and transport). These tests are called B.C.T. (Box Compression Test).
The Compression Testers can operate in five ways:
1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and
beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and
beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke
