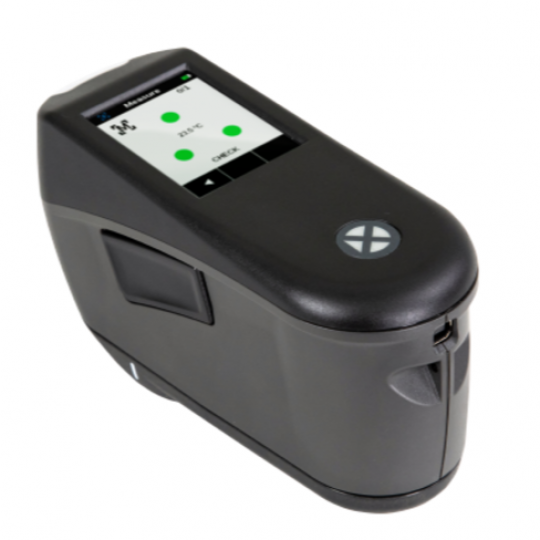

MA-5 QC Multi-Angle Spectrophotometer

MA-5 QC Multi-Angle Spectrophotometer

1. 3rd Party Software Supported: MA 94 emulation mode
2. Battery: Lithium Ion Battery
3. Battery Life: >= 2,000 5-angle measurements (continuous measurements at 10s intervals)
4. Calibration Interval: 21 days
5. Calibration: Internal calibration
6. Color Differences: dE*, dE2000; dE cmc, dE DIN 6175, dE Audi 2000
7. Communication Interface: TFT color display
8. Connectivity: USB 2.0
9. Dimensions (length, width, height): L: 180 mm, W: 70 mm, H: 95 mm
10. Humidity: 80% relative humidity
11. Illuminants: D65, A, C, D50, F2, F7, F11, F12, D65
12. Illumination Colors: White
13. Illumination Spot Size: Pick-up field size: diameter ≈ 12 mm
14. Instrument Display: TFT color display with resistive touch, 2.8-inch diagonal, QVGA (240 x 320)
15. Inter-Instrument Agreement: Avg. 0.18 ΔE* on BCRA Tile Set
16. Lamp Life: 10 years
17. Languages Supported: E, F, I, Esp, D, P, Ch, J, Kor
18. Light Source: LED
19. Measurement Geometry: r45as15, r45as25, r45as45, r45as75, r45as110
20. Measurement Time: 2.5 seconds
21. Measurement Working Distance: Contact on surface
22. Observers: d2°, d10°
23. Operating Temperature Range: 10°C - 35°C
24. Photometric Range: 400 nm - 700 nm
25. Photometric Resolution: 10 nm
26. Sample/Measurement: 1000
27. Short Term Repeatability - White: 0.02 de*
28. Standards: 200
29. Storage Temperature Range: -20°C - 50°C
30. Unit Color: Black
31. Warranty: 12 months
32. Weight: 0.6 kg
