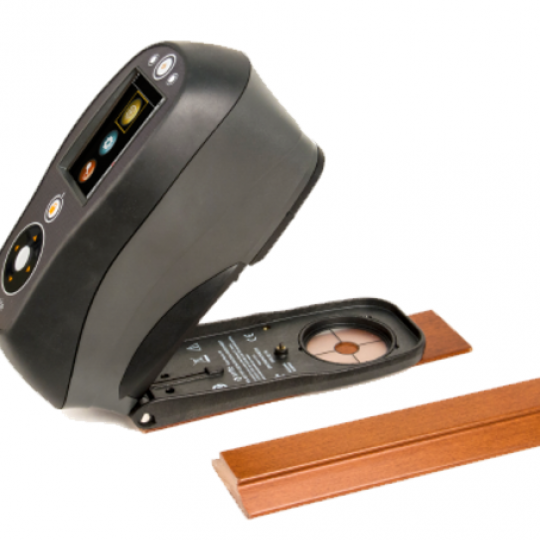

Ci64 Handheld Spectrophotometer

Ci64 Handheld Spectrophotometer

1. Battery: Li-ion
2. Battery Life: 1000 measurements (non-UV) at 10-second intervals
3. Calibration: White, Zero, UV*
4. Color Differences: [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔLab*, ΔYxy, ΔLCh°, ΔLuv*, Verbal Difference
5. Color Spaces: Lab, Lab*, Reflectance, LCh°, Munsell Notation, XYZ, Yxy, Luv*
6. Communication Interface: USB 2.0, Bluetooth*
7. Dimensions (length, width, height): 21.3 cm x 9.1 cm x 10.9 cm
8. Embedded NetProfiler Support: Yes
9. Humidity: 5% to 85%, non-condensing
10. Illuminants: A, C, D50, D65, F2, F7, F11 & F12
11. Illumination Spot Size: 20mm or 14mm and 6.5mm
12. Import/Export Format: CSV
13. Instrument Display: Backlit Color Graphic LCD
14. Inter-Instrument Agreement: 0.13 ΔEab avg. (8mm)
15. Lamp Life: Approx. 500,000 measurements
16. Languages Supported: English, German, French, Spanish, Italian, Portuguese, Simplified Chinese, Traditional Chinese, Korean, Japanese
17. Light Source: Gas-filled tungsten lamp + UV LEDs
18. Measurement Cycle Time: ≈ 2 seconds
19. Measurement Geometry: d/8°
20. Measurement Spot: 14mm or 8mm and 4mm
21. Measurement Time: ≈ 2 seconds
22. NetProfiler Support: Embedded
23. Observers: 2° & 10°
24. Operating Temperature Range: 50° to 104°F (10° to 40°C)
25. Package Dimensions (length, width, height): 51cm x 20cm x 41cm
26. PantoneLIVE Support: Via software
27. Pass / Fail: Yes
28. Photometric Range: 0 to 200%
29. Photometric Resolution: 0.01%
30. Reflectance Aperture(s): 1 or dual
31. Sample/Measurement: 4000
32. Sample Preview: Targeting window
33. Shipped Weight: 7kg
34. Short Term Repeatability - White: .04 ΔE*ab on white ceramic
35. Software Development Kit: XDS4
36. Spectral Analyzer: Blue-enhanced silicon photodiodes
37. Spectral Interval: 10nm
38. Spectral Range: 400nm-700nm
39. Spectral Reporting: 10nm
40. Standard Indices: [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averaging, 555 Shade Sort
41. Standards: 1000
42. Storage Temperature Range: '-4° to 122°F (-20° to 50°C)
43. Transform Support: Embedded
44. Voltage: 100-240VAC 50/60Hz, 12VDC @ 2.5A
45. Warranty: 12 months
46. Weight: 1.06 kg
