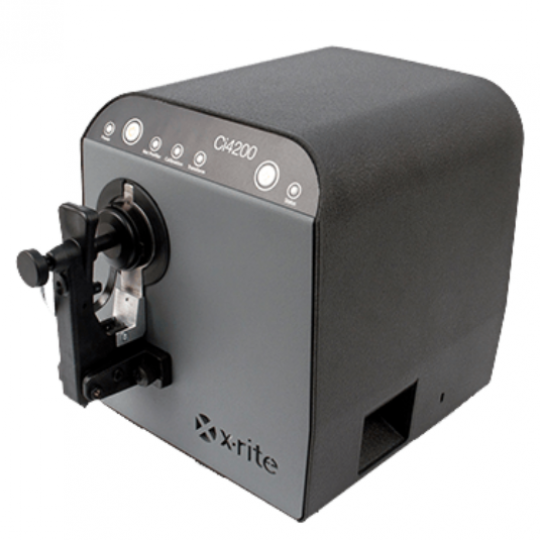

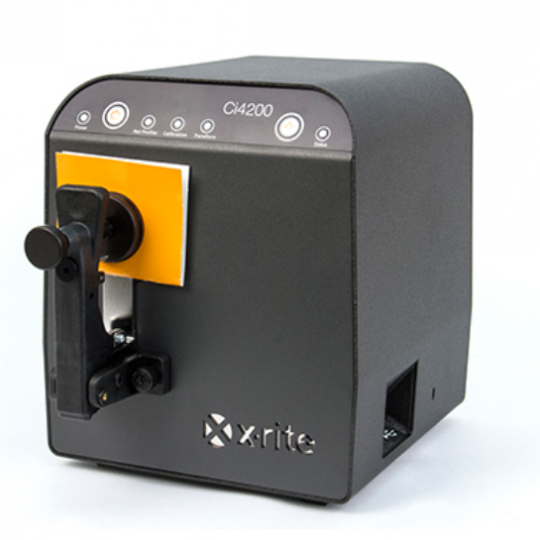

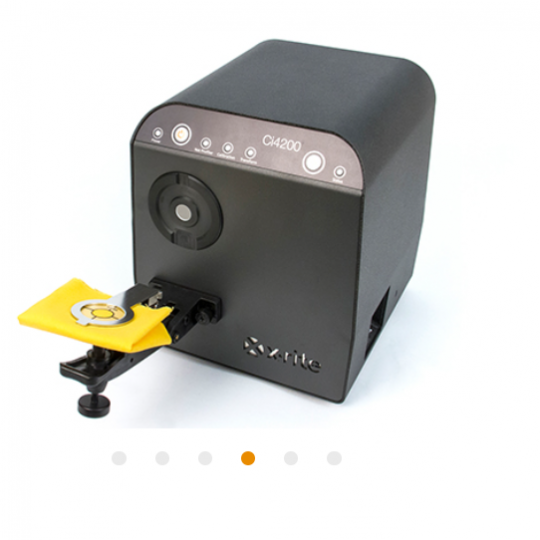

Ci4200 Compact Benchtop Spectrophotometer

Ci4200 Compact Benchtop Spectrophotometer

Ci4200 Compact Benchtop Spectrophotometer
The Ci4200 is an easy-to-use compact benchtop sphere spectrophotometer that, combined with Color QC and Formulation software, supports an evolving color management program.

Ứng dụng:

Specifications



Short Term Repeatability - White .05 ΔE*ab on white ceramic
Measurement Geometry d/8°
Inter-Instrument Agreement 0.20 ΔE*ab avg.
Illumination Spot Size 14mm
Lamp Life Approx. 500,000 measurements
Light Source

Gas-filled tungsten lamp

+ UV LEDs*

Measurement Cycle Time ≈ 2 seconds
Measurement Spot 8mm
Measurement Time ≈ 2 seconds
Photometric Range 0 to 200%
Photometric Resolution 0.01%
Spectral Analyzer Blue-enhanced silicon photodiodes
Spectral Interval 10nm
Spectral Range 400nm-700nm
Spectral Reporting 10nm
Reflectance Aperture(s) 1
Humidity 5% to 85%, non-condensing
Operating Temperature Range 50° to 104°F (10° to 40°C)
Storage Temperature Range '-4° to 122°F (-20° to 50°C)
Dimensions (length, width, height)  26.4cm, 19.0cm, 22.0cm
Weight '5.2kg
Package Dimensions (length, width, height)  48cm, 33cm, 36cm
Shipped Weight '10kg
Communication Interface USB 2.0
Software Development Kit XDS4
Voltage

100-240VAC 50/60Hz,

12VDC @ 2.5A

Warm Up Time None
Calibration White, Zero, UV*
Embedded NetProfiler Support Yes
NetProfiler Support Embedded
Sample Preview Targeting window
Service Indicator Status panel
Transform Support Embedded
Warranty 12 months
What's Included? Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, UV cal standard*
