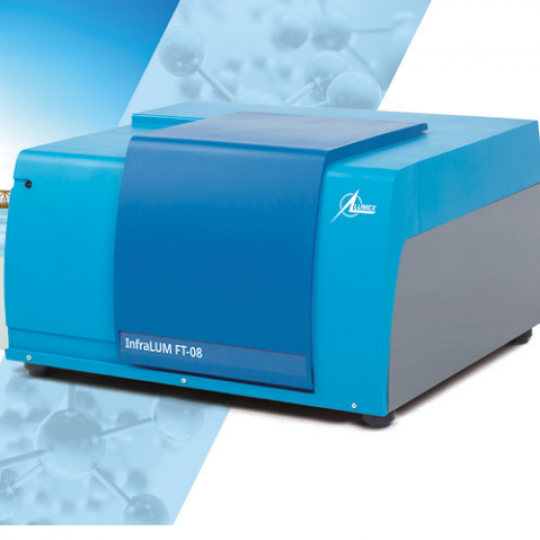

FTIR spectrometer InfraLUM FT-08

FTIR spectrometer InfraLUM FT-08

FTIR spectrometer InfraLUM FT-08
Model: INFRALUM FT-08
Manufacturer: Lumex - Canada
Our new FT mid-IR spectrometer InfraLUM FT-08 has been designed basing on our extensive R&D and expertise in the IR spectroscopy (infrared spectroscopy). This multipurpose and easy-to-operate instrument provides a well suited option for various analytical laboratories.

Ứng dụng:

FTIR spectrometer InfraLUM FT-08
Model:  INFRALUM FT-08
Manufacturer: Lumex - Canada
Application examples
Chemical industry
Identification of unknown chemical substances
Determination of raw material purity
Determination of fractional composition
Functional and structural-functional analysis
Determination of Water in Liquid Chlorine (ASTM E1754)
Testing the composition of polymer films and coatings (ASTM D2124, ASTM D2238, ASTM D3124, ASTM D3594, ASTM D4660, ASTM D5576, ASTM D5594, ASTM D6248, ASTM D6645, ASTM D8036, ASTM F2778, ASTM F2102)
Testing the composition of rubber (ASTM D2702, ASTM D3677, ASTM D3900, ASTM D5670, ASTM D6047, ISO 4650)
Qualitative Classification of Surfactants (ASTM D2357)
Forensic investigations
Identification of impurities and trace amounts of substances.
Pharmaceutical industry
Determination of the authenticity of medicine preparations using IR reference standards;
Quality control of medicine preparations using IR reference standards;
Quality assurance of organic raw materials.
Oil and gas industry
Determination of the composition of natural gas and gas industry products
Identification of unknown chemical substances
Determination of crude oil and gas purity
Determination of fractional composition
Functional and structural-functional analysis
Examination of electrical insulating oils (DIN IEC 60590, D2144, D2668)
Condition Monitoring of Lubricants (ASTM D7214, ASTM D7412, ASTM D7414, ASTM D7415, ASTM D7624, ASTM D7844, ASTM D7889, ASTM E2412)
Determination of benzene in gasoline (DIN EN 238, ASTM D4053, ASTM D6277)
Determination of oxygenates in Gasoline (ASTM D5845)
Biofuel analysis (concentration of FAME) (EN 14078, ASTM D7371, ASTM D7806)
Ecological and sanitary monitoring
Detection of the presence of ozone-destructing substances
Measuring the content of petroleum hydrocarbons in water (ASTM D3921, ASTM D7066)
Measurement of Respirable Crystalline Silica in Workplace Air (ASTM D7948)
- Specifications
Spectral range:
8000-350 cm-1 (KBr optics)
8000-500 cm-1 (ZnSe optics)
- Variable resolution: 64, 32, 16, 8, 4, 2, 1, 0.5 cm-1
RMS signal-to-noise ratio: > 60000 (4 cm-1, 1 min)
- Stability of the 100% line, %: 0.2
- Scanning speed: 0.8 s/scan at 16 cm-1 resolution
- Detector: High resolution DLATGS
- Beamsplitte: Ge-coated KBr (or ZnSe) in a hermetically sealed dessicated housing
- Wavenumber accuracy: ±0.05 cm-1
Interfereometer:
Vibration- and misalignment-proof patented
Double Cat’s Eye Interferometer
- Radiation source: High-intensity long-life stabilized ceramic IR radiation source
- Power consumption: 65W
- Weight: 32kg
Size: 580x550x340 mm
