Atomic Absorption Spectrometer MGA-1000

Atomic Absorption Spectrometer MGA-1000

Atomic Absorption Spectrometer
Model: MGA-1000
Manufacturer: Lumex - Canada

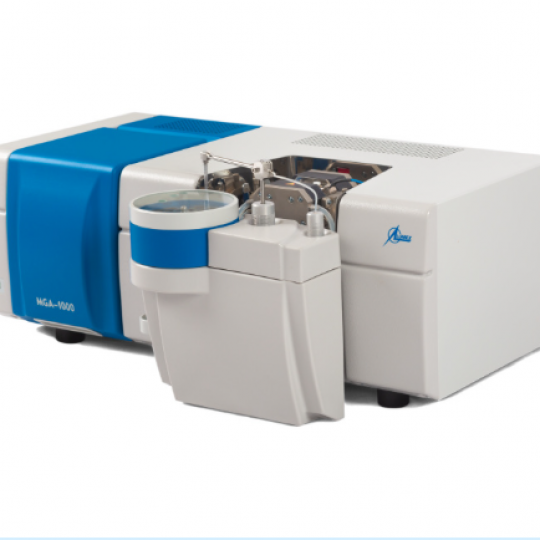

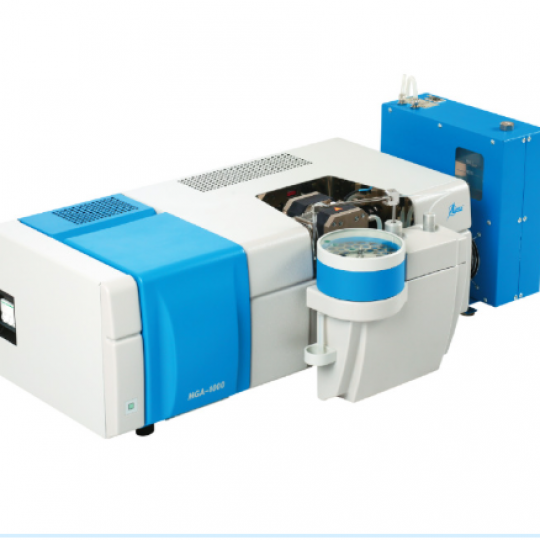

MGA-1000 is a graphite furnace atomic absorption spectrometer based on the patented Zeeman High Frequency Polarization Modulation (ZHFPM) technique.
MGA-1000 is intended for determination of a wide range of elements in various types of samples (water, soil, foodstuffs, fodders, pharmaceuticals, etc.).
The instrument performs high selectivity and sensitivity of analysis.

Ứng dụng:

Atomic Absorption Spectrometer
Model: MGA-1000
Manufacturer: Lumex - Canada
FEATURES AND ADVANTAGES:
Simultaneous measurement of total and background absorptions
Simple direct analysis of samples with high salinity and organic content: blood, body fluids, sea water, brines, food and soil digests, etc.
Smart 47-position autosampler supports standard centrifuge-type tubes
Effective cooling system included
Stabilized temperature platform furnace (STPF) concept implemented
No flammable gases nor air compressor needed, argon only is used for operation
Standard graphite tubes (28 mm) of both Massman and L’vov types are available, tube lifetime is prolonged
Quasi-double beam optics eliminate drifts and enable direct work with no warm-up needed
Low detection limits and direct determination of As, Se, and other elements at levels from 1 ppb without hydride generation technique or preconcentration
Analysis of Na, K, Mg, and Ca from sub-ppb to hundreds of ppm levels
6-lamps turret supports both hollow cathode lamps and electrodeless discharge lamps (EDL)
Compact size of instrument and noiseless operation: fits in regular lab, no requirements for separate room
Cold Vapor/Hydride Generation accessory for Hg analysis
APPLICATIONS
MGA-1000 spectrometer is an excellent solution for reliable and accurate trace elements and macro elements analysis in various industries:
Environmental monitoring
Water treatment
Food and beverages
Agriculture
Pharmaceutics and life science
Medicine and biochemistry
Forensics and clinical research
Petrochemistry and refineries
Process control and material analysis
Science and research
Specifications:
Wavelength range: 185 – 900 nm
Maximal temperature of the furnace atomizer: 3000 °C
Furnace heating rate: up to 4500 K/sec
Non-selective absorbance correction: Zeeman background correction with high-frequency modulation of light polarization
Lamp turret: Revolver turret for 6 lamps
Spectral lamps:
- Hollow Cathode Lamps
- Electrodeless Discharge Lamps
Argon flow rate (high purity argon): < 2 l/min
Typical tube lifetime: Up to 800 analysis cycles
Autosampler capacity: 47 positions
Atomizer cooling: Closed-loop water cooling system
Power supply: Three-phase 220/380VAC, 50/60 Hz
or 120/208VAC, 50/60 Hz
Power consumption: 0.1 kW in standby
6 kW in atomization mode
Size: 800 × 475 × 310 mm
Weight: 50 kg
