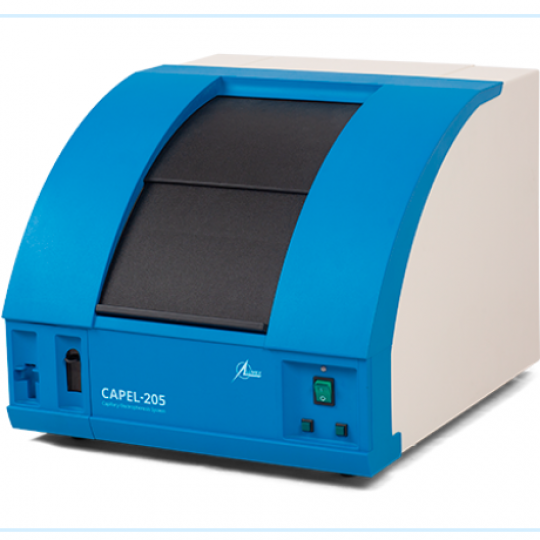

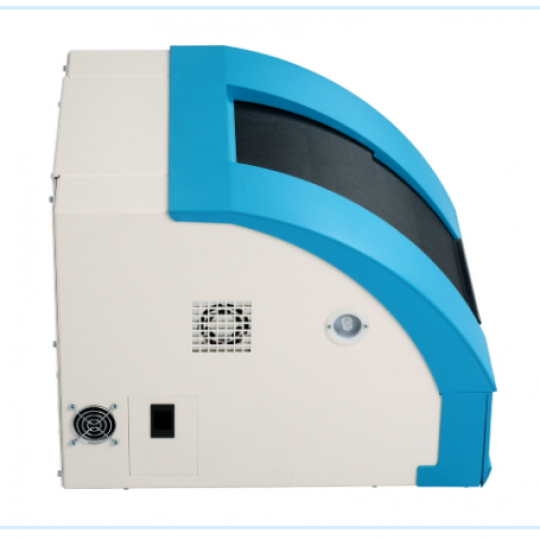

Capillary electrophoresis system Capel-205

Capillary electrophoresis system Capel-205

Capillary electrophoresis system
Model: Capel-205
Manufacturer: Lumex - Canada
- Capel-205 realizes principle of capillary electrophoresis (CE) – separation technique, capable to determine multiple components in one run in various types of samples.
- Short analysis time and high separation efficiency make CE method a great solution for food industry, environmental applications, pharmaceutical and chemical industries, biochemistry and science.

Ứng dụng:

Capillary electrophoresis system
Model: Capel-205
Manufacturer: Lumex - Canada
The main advantages of Capel-205 are:
Great variety of applications may be done thanks to electrophoresis separation technique
One instrument for multiple purposes: detects various types of analytes in almost any kind of aqueous-organic samples
Short analysis time and large autosampler capacity increase lab throughput
No any additional equipment (gas supplier, water bath, etc.) is required: Capel-205 works alone right after installation
Low reagents and sample consumption and standard consumables minimize running costs
No sample evaporation and contamination thanks to sealed vials with automatic opening in the autosampler
21 CFR part 11 compliant software
Streaming potential control technique (optionally) improves repeatability of migration time and accuracy of analysis
Specifications:
Detector: Spectrophotometric
Light source: Deuterium lamp
Detection wavelength: 190–400 nm
Analysis:
Constant voltage, (+/-) 1–25 (30)* in a 1 kV step
Automatic (electronic) polarity switch:
Current 0–300 μА
Pressure, up to 100 mbar
Programmable changing of wavelength, pressure and voltage during analysis
Injection:
By voltage, (+/-) 1–25 (30)* in a 1 kV step;
By pressure, from –100 to 100 mbar in 1 mbar steps
Rinsing: By pressure, 500–2 000 mbar in 1 mbar steps
Capillary: Length 40–120 cm, internal diameter 50, 75 μm
Temperature control of capillary: From 10 °C below ambient temperature (although not lower than +5 °C in absolute value) to +50 °C in absolute value
Sampler:  Autosampler for 59 vials (standard microcentrifuge-type 1.5 mL)
Controlled parameters:
Wavelength
Pressure
Temperature
Voltage
Control: Elforun software
Streaming potential control: Optional streaming potential control facility available
Power supply: 110–240 VAC, 50/60 Hz
Power consumption: 170 W
Dimensions: 470х530х410 mm
Weight: 30 kg
