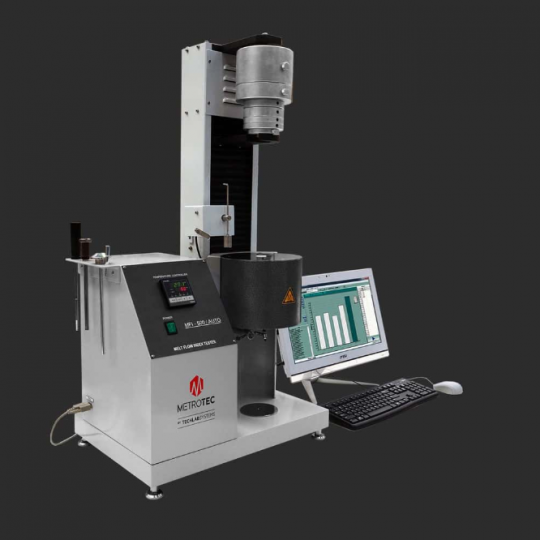

Volumetric Melt Flot Flow Indexer model MFI-500-AUTO

Volumetric Melt Flot Flow Indexer model MFI-500-AUTO
- Gravimetric and volumetric method.
- Computerized by Melt Flow Index Software (Mini PC included in the supply).
- The Testing Software allows testing and determines the flow rate.
- Automatic sample cutting.
- PID temperature controller (holding ± 0.1ºC).
- Programmer of time and number of cutting cycles.
- Equipment prepared to work with corrosive materials such as PVC.
- The kit includes all working and cleaning tools, piston and standard nozzle.
- Standard temperature range up to +325 ºC (*) with resolution of ± 0.1ºC.
- Digital stopwatch with a range of up to 9999 seconds.
- 7 Chromed and polished weights included in the standard supply: 1.2 Kg – 2.16 Kg – 3.8 Kg – – 5 Kg – 5 Kg – 6.6 and 10 Kg (The weight of 21.6 kg is achieved by combining the weights of 5kg, 6.6kg and 10kg).
- Motorized automatic weight loader.
- RS-232 output interface with converter to USB.
- To calculate the Melt Index in the MFI-500/AP model using the Gravimetric method, it is necessary to weigh the extruded material with a - resolution of 0.001 g, therefore we recommend using a precision balance.
- CE marked.
Standards
ASTM D1238, DIN 1133, EN 1133, ISO 1133, UNE 1133.
