Multifunctions process calibrators

Multifunctions process calibrators

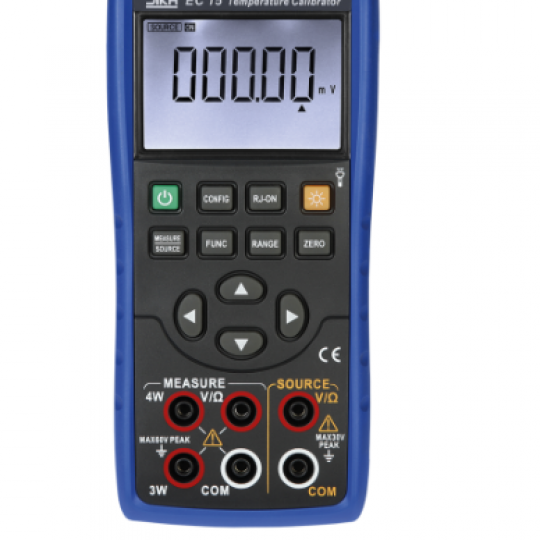

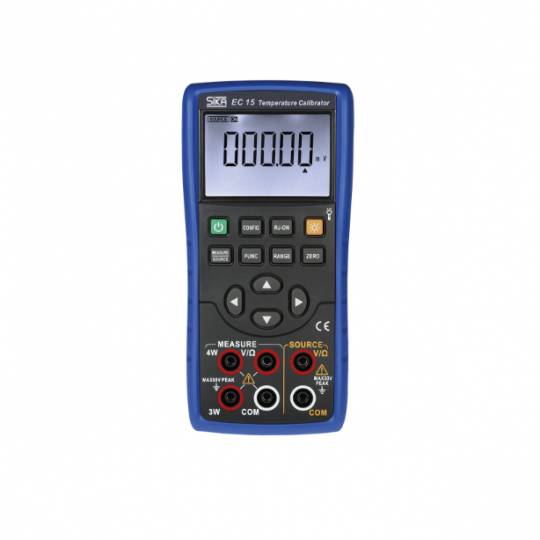

Model: EC 15
Technical data:
- Resistance thermometers (RTD):
Generation and measurement of RTD signals : Pt100, Pt200, Pt500, Pt1000, Cu50
Ω-generator function: 0...4000 Ω
Ω-measurement function: 0...5500 Ω
Accuracy (of reading + const.): ±0.05 %
Selectable temperature unit: °C / °F
Measurement of multi-wire connections: 2 / 3 / 4
- Thermocouples (TC):
Generation and measurement of TC signals: R, S, K, E, J, T, N, B, A, C, D
mV-generator function: -100...1100 mV
mV-measurement function: -50...550 mV
Accuracy (of reading + const.): ±0.05 %
Selectable temperature unit: °C / °F
Internal comparison point: ±0.5 °C
- Voltage (V):
Voltage signal generation : -1...11 V
Voltage signal measurement: -5…55 V
Accuracy (of reading + const.): ±0.05 %
- Technische Daten:
Type : EC 15
- Continuity (O/C)
Continuity measurement : O / C
Switching threshold „open“: 0.5 kΩ
- General data:
Type :EC 15
Sensor connection 4 safety sockets (1 channel) incl. 2 sets
with safety instrument leads (4 mm) and alligator clips
Power supply: 4 x 1.5 V AAA-battery
Operating time approx. 25 h
with auto-power-off
- Operator guidance Keypad:
Display Multifunction display
LCD, 5½ digit, illuminated
- Housing
Version : ABS plastic with protective cover
Dimensions: 210 x 100 x 40 mm (H x W x D)
Weight Approx.: 550 g
