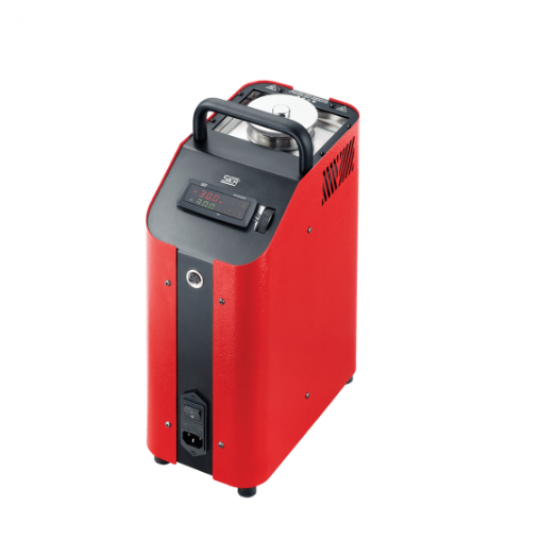

Temperature calibrator TP M255S

Multi-function temperature calibrator Model: TP 3M255E.2 Technical data - Temperature range: Room temperature...255 °C / Room temperature...491 °F - Dimension of the calibration insert: Ø 60 x 170 mm (calibration insert easily exchangeable) - Display accuracy: ±0.08 °C - Temperature stability: ±0.010 °C - Temperature distribution: + Axial : ±0.080 °C + Radial : ±0.050 °C - Influence of load: ±0.025 °C - Display accuracy : ±0.25 °C / 0.45 °F - Temperature stability : ±0.020 °C / 0.036 °F - Temperature distribution: + Axial : ±0.300 °C /0.540 °F + Radial: ±0.150 °C/ 0.270 °F - Influence of load: ±0.100 °C/ 0.180 °F - Display accuracy: ±0.35 °C /0.63 °F - Temperature stability: ±0.05 °C 0.09 °F - Temperature distribution: + Axial : ±0.300 °C/ 0.540 °F + Radial : ±0.150 °C/0.270 °F - Influence of load: ±0.100 °C 0.180 °F - Display accuracy: ±0.18 °C/0.324 °F - Temperature stability: ±0.040 °C/ 0.072 °F - Temperature distribution: + Axial: ±0.150 °C/0.270 °F + Radia: ±0.150 °C/0.270 °F - Influence of load : ±0.100 °C/0.180 °F - Display accuracy: ±0.5 °C /0.9 °F - Temperature stability: ±0.05 °C /0.09 °F - Emission factor: 0,9994 - Display accuracy: ±1 °C /±1.8 °F - Temperature stability: ±0.2 °C/ ±0.36 °F

Multifunctions process calibrators Model: EC 15 Technical data: - Resistance thermometers (RTD): Generation and measurement of RTD signals : Pt100, Pt200, Pt500, Pt1000, Cu50 Ω-generator function: 0...4000 Ω Ω-measurement function: 0...5500 Ω Accuracy (of reading + const.): ±0.05 % Selectable temperature unit: °C / °F Measurement of multi-wire connections: 2 / 3 / 4 - Thermocouples (TC): Generation and measurement of TC signals: R, S, K, E, J, T, N, B, A, C, D mV-generator function: -100...1100 mV mV-measurement function: -50...550 mV Accuracy (of reading + const.): ±0.05 % Selectable temperature unit: °C / °F Internal comparison point: ±0.5 °C - Voltage (V): Voltage signal generation : -1...11 V Voltage signal measurement: -5…55 V Accuracy (of reading + const.): ±0.05 % - Technische Daten: Type : EC 15 - Continuity (O/C) Continuity measurement : O / C Switching threshold „open“: 0.5 kΩ - General data: Type :EC 15 Sensor connection 4 safety sockets (1 channel) incl. 2 sets with safety instrument leads (4 mm) and alligator clips Power supply: 4 x 1.5 V AAA-battery Operating time approx. 25 h with auto-power-off - Operator guidance Keypad: Display Multifunction display LCD, 5½ digit, illuminated - Housing Version : ABS plastic with protective cover Dimensions: 210 x 100 x 40 mm (H x W x D) Weight Approx.: 550 g

Multi-function temperature calibrator Model: TP 3M255E.2i SIKA - Germany

Multifunctions process calibrators Model: EC 25
