Overhead Stirrer

Overhead Stirrer

Overhead Stirrer
Analog Model
Belt type gear system with powerful operation 3 ratio or gear applied products cover wide range or sample
High Durable-Chrome-Plated, Anti-Rust Chuck
Over-Heat, Over-Load, Over Current Protection to secure the safety of products and sample
Anti-Trembling function for Impeller
Operatio Icon of high intuitiveness and Easy-to read backilt LCD are equipped
Excellent design focused on the convenience of users

Ứng dụng:

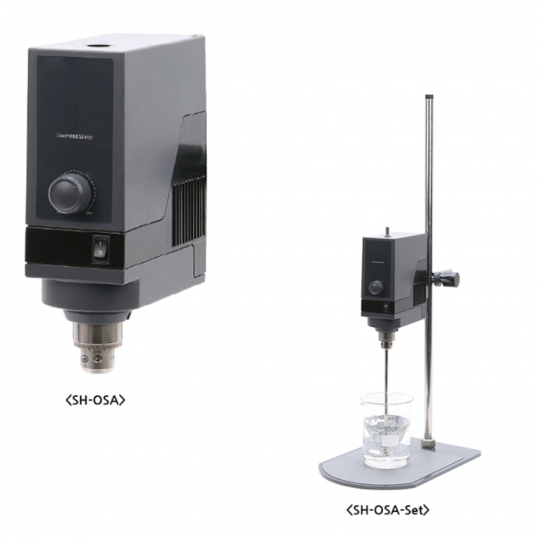

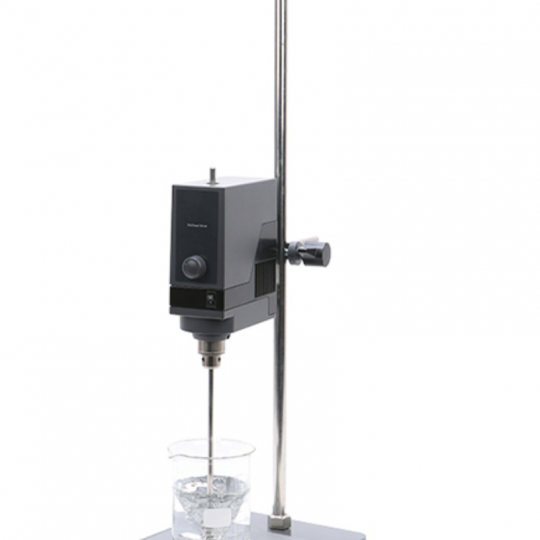

Model SH-OSA-25 SH-OSA-25-Set
Stirring Capacity Max.25 Lit. (H2O)
Maximum Viscosity 70,000mPas
Maximum Torque 120 Ncm
Gear Rate 2.0:1
Speed Range 100 to 2,000rpm
Motor Rating (Input/Output) 110W / 85W
Speed Control Stepless
Max. Impeller Shaft Diameter 10 mm
Permissible Temp. & Humidity 0~40℃,80%
Safety Device Over Heat Protector for Motor
Material ABS and Aluminum
Power Consumption 180W
Dimensions(wxdxh) 80x194x245mm
Net Weight 3.82Kg
Packing Size(wxdxh) 281x460x172mm
Gross Weight 4.44Kg
Power Supply  AC 120V, 60Hz or 230V, 50/60Hz, 1 Phase
Accessories - SH-OSSR010, SH-OSSR020, SH-OSHC010
