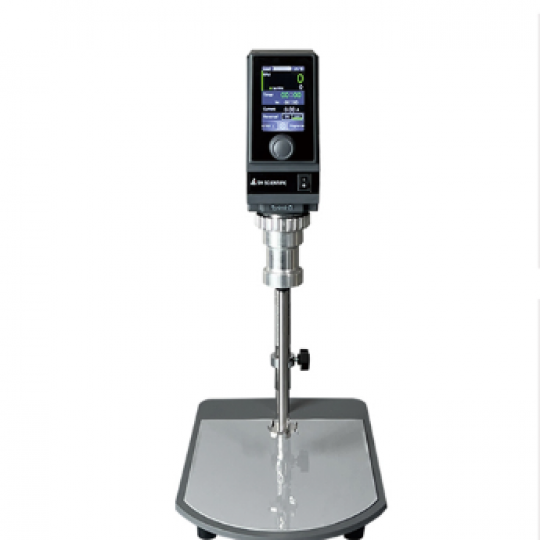

SH-HD-SET Homo Disperser

SH-HD-SET Homo Disperser

Brushless DC motor
Automatic Reverse operation
Provides Precise and Smooth motion

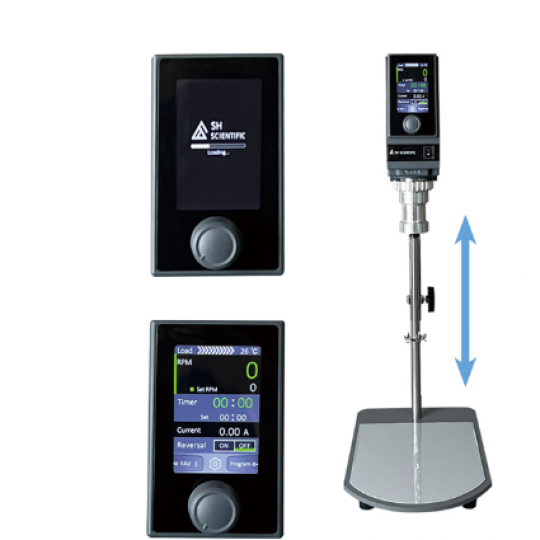

Telescopic stand provided
High Fidelity Touch Color LCD Display
Provides Convenience of use for Accurate experiments
High safety (Over-Load & Current, Over-Heat Protection, Electric Error Code Display)

Ứng dụng:

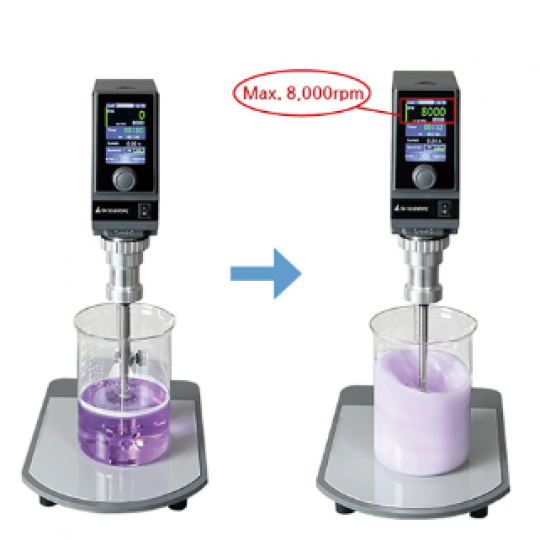

Speed Range 500 to 8,000 rpm(without load)
Speed Control Resolution 10rpm
Maximum Volume (H2O) Max. 5 Lit.
Motor Wattage 300W
Working Direction Forward & Reverse
(Can change automatically by program operation)
Motor Type Brushless DC Motor
Safety Devices Overload, Current & Heat Protector for Motor, Electric Error Code Display
Permissible Temp. & Humidity 5℃~40℃, <80%
Setting Tool  'SH-HDT' Homo Disper Tool
Material Turbine SUS316
Shaft SUS304
Controller Digital PID Feedback Control
High Performance MCU
(Power mode available : Non Feedback control)
Timer 99hr 59min
Display High Fidelity Touch Color 3.5inch LCD Display
Others – Special function Current monitoring in real time
Motor Temp. monitoring in real time
Favorite setting function (Total 8ea)
Real Time Monitoring and date back up by USB port
Program Operation 9 Programs, 11 Steps
Dimensions (wxdxh) & Net Weight 80 x 185 x 260 mm, 10.39kg
Packing Size (wxdxh) & Gross Weight 290 x 800 x 180 mm, 12.14kg
Power Consumption 350W
Power Supply 1 Phase, AC 120V, 60Hz or AC 230V, 50/60 HZ

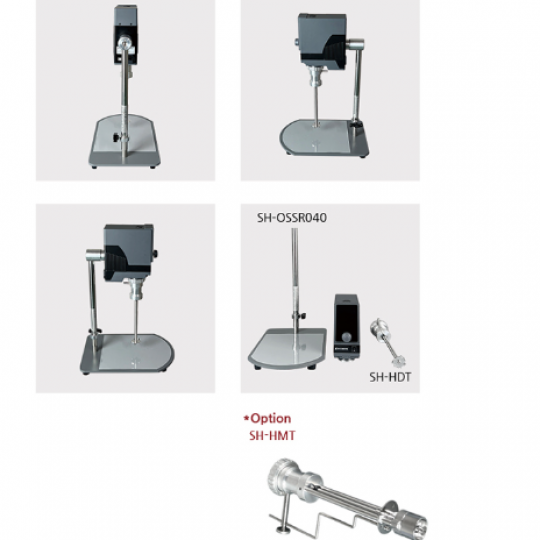

Accessories SH-HDT, SH-OSSR04
