C106H Gas Permeability Test System
-
925
-
0765 259 545

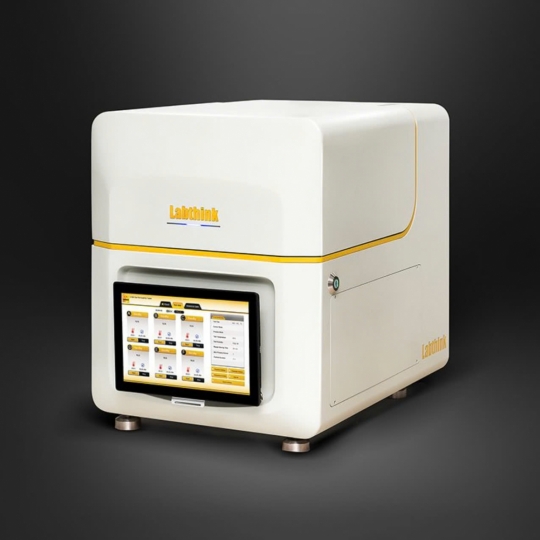

C106H Gas Permeability Test System
ModelL C106H
Labthink - China
C106H Gas Permeability Test System is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high barrier materials, sheets, and metal foils at different temperatures. The test system conforms to GB, ISO, ASTM and other international standards.
ModelL C106H
Labthink - China
C106H Gas Permeability Test System is based on the differential pressure method, and is professionally applicable to the determination of gas transmission rate, solubility coefficient, diffusion coefficient and permeability coefficient of plastic films, composite films, high barrier materials, sheets, and metal foils at different temperatures. The test system conforms to GB, ISO, ASTM and other international standards.
C106H Gas Permeability Test System
ModelL C106H
Labthink - China
ModelL C106H
Labthink - China
Accurate Data
Brand new dome design test chamber and 360° air circulation constant temperature technology ensures better temperature stability.
Imported high-precision vacuum sensor can accurately test ultra-high barrier materials with 0.01～0.09cm3/ m3·24h·0.1MPa test range.
Imported pneumatic control system has a low failure rate and an ultra-long service life, ensuring good overall system air tightness and high test accuracy.
Imported vacuum pump can reach 0.2Pa extreme pressure with increased vacuum rate.
The vacuum pump is controlled automatically by the system without manual opening and closing, increases efficiency and saves labor.
Labthink’s unique high-precision automatic pressure compensation technology in the test process realizes a constant pressure difference in the high-pressure chamber, and the pressure fluctuation is less than 0.2 kPa.
The pressure in high-pressure chamber can be set within the range of 10kPa~210kPa, the pressure can be maintained accurately and stably by the system.
Test Principle
The pre-conditioned specimen is mounted in the test cell as to form a sealed barrier between two chambers. The lower-pressure chamber (lower chamber) is firstly evacuated, followed by the evacuation of the entire cell. A flow of gas is thereafter introduced into the evacuated higher-pressure chamber (upper chamber) and a constant pressure (adjustable) difference is generated between the two chambers. The gas permeates through the specimen from higher pressure side into the lower pressure side. The gas permeability and other barrier properties of the specimen can be obtained by analyzing the pressure changes in the lower chamber.
Standard: ISO 15105-1、ISO 2556、GB/T 1038-2000、ASTM D1434、JIS K7126-1、YBB 00082003
Applications:
Films:
- Gas transmission rate test of various plastic films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films, glass fiber aluminum foil composite films and many others
Sheets:
- Gas transmission rate test of PP, PVC and PVDC sheets, metal foils, rubber pads, silicon wafers and other sheet materials
Test Parameters
| Parameters/Model | C106H | |
|---|---|---|
| Test range | cm3/m2·24h·0.1MPa | 0.01～50,000 |
| Resolution | cm3/m2·24h·0.1MPa | 0.001 |
| Test temperature | ℃ | 15～50，5～60（Optional） |
| Temperature resolution | ℃ | 0.01 |
| Temperature fluctuation | ℃ | ±0.15 |
| Test humidity | %RH（Within standard test temperature range） | 0%，5～90%±2%（Customize） |
| Vacuum Resolution | Pa | 0.01 |
| Vacuum Accuracy | Pa | ±0.2%（1%-100% of Full Scale） |
| Vacuum Degree of Test Chamber | Pa | ≤ 10 |
| Additional Functions | DataShieldTM note3 | Optional |
| GMP Computer System requirement | Optional | |
| CFR21Part11 | Optional | |
Table 2: Technical Specifications
| Test Cell | 6 Cells |
|---|---|
| Specimen Size | 4.6” x 4.6”（11.7cm×11.7cm） |
| Specimen Thickness | ≤120 Mil（3mm） |
| Standard test area | 38.48cm2 |
| Test Gas | O2、N2、CO2 etc.（Outside of supply scope） |
| Test Pressure | 10 kPa~210 kPa（Can be set between） |
| Pressure Fluctuation | 0.2 kPa |
| Gas Pressure | 79.7 PSI / 550 kPa |
| Port Size | Φ6 mm PU tubing |
| Instrument Dimension | 23.6” H x 19.2” W x 25.9” D (60cm× 49cm× 66cm) |
| Power Supply | 120VAC±10% 60Hz/220VAC±10% 50Hz（one of two） |
| Net Weight | 220Lbs（100kg） |
Product Similar
This test instrument conforms to the following standards: ISO 37, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB14232.1-2004, GB15811-2001, GB/T1962.1-2001, GB2637-1995, GB15810-2001, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, QB/T 2358, QB/T 1130, JIS P8113, YY0613-2007, YBB00042002, YBB00112004
