C403H Oxygen /Water Vapor Transmission Rate Test System
-
1133
-
0765 259 545

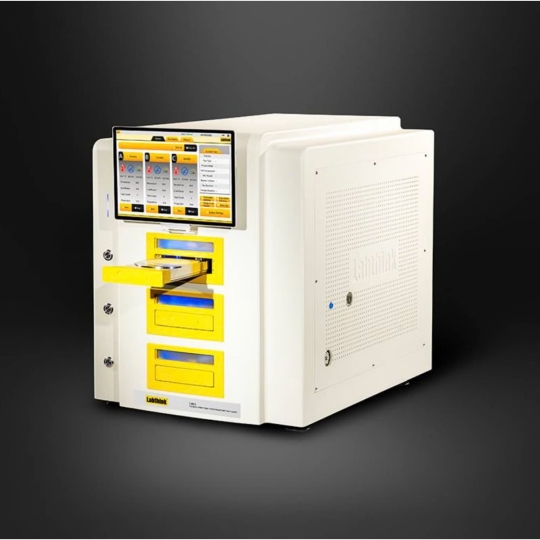

C403H Oxygen /Water Vapor Transmission Rate Test System
Model: C403H
Labthink - China
C403H Oxygen /Water Vapor Transmission Rate Test System is based on the testing principle of Coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured according to ASTM D3985、ASTM F1249，ISO 15106-2 and other relevant standards to provide high precision and high efficiency oxygen and water vapor transmission rate tests for high and medium gas barrier materials. It is suitable for testing the oxygen and water vapor transmission performance of films, sheets and related materials in the fields of food, medicine, medical devices, daily chemicals, photovoltaic, electronic and many others.
Model: C403H
Labthink - China
C403H Oxygen /Water Vapor Transmission Rate Test System is based on the testing principle of Coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured according to ASTM D3985、ASTM F1249，ISO 15106-2 and other relevant standards to provide high precision and high efficiency oxygen and water vapor transmission rate tests for high and medium gas barrier materials. It is suitable for testing the oxygen and water vapor transmission performance of films, sheets and related materials in the fields of food, medicine, medical devices, daily chemicals, photovoltaic, electronic and many others.
C403H Oxygen /Water Vapor Transmission Rate Test System
Model: C403H
Labthink - China
Model: C403H
Labthink - China
Testing Principle
The pre-treated sample is clamped between the test chambers, oxygen or nitrogen with stable relative humidity flows on one side of the film, and the high purity nitrogen flows on the other side; oxygen or water molecules diffuse through the film into high-purity nitrogen on the other side, and are carried to the sensor by the flowing nitrogen. By analyzing the oxygen or water vapor concentration measured by the sensor, the oxygen or water vapor transmission rate can be calculated.
Reference Standards
ASTM D3985, ASTM F1307, GB/T 19789, GB/T 31354, DIN 53380-3, JIS K7126-2-B, YBB 00082003-2015
ASTM F1249, ISO 15106-2, GB/T 26253, JIS K7129, YBB00092003-2015
Test Applications
- Films
The oxygen and water vapor transmission rate tests of various plastic films, paper-plastic composite films, co-extrusion films, aluminized films, aluminum foil composite films, glass fiber aluminum foil paper composite films and other film-like materials.
The oxygen and water vapor transmission rate tests of various plastic films, paper-plastic composite films, co-extrusion films, aluminized films, aluminum foil composite films, glass fiber aluminum foil paper composite films and other film-like materials.
- Sheets
The oxygen and water vapor transmission rate tests of PP sheet, PVC sheet, PVDC sheet, metal foil, rubber sheet, silicon sheet and other sheet materials.
The oxygen and water vapor transmission rate tests of PP sheet, PVC sheet, PVDC sheet, metal foil, rubber sheet, silicon sheet and other sheet materials.
Technical Specifications
OTR Test Range
- cc/(m2·day) (Standard area 50cm2) : 0.01 ~ 200
- cc/(m2·day) (MASK area 5cm2) : 0.2 ~ 2000 (Optional)
- cc/(m2·day) (MASK area 1cm2): 1 ~ 10000 (Optional)
OTR Resolution:
- cc/(m2·day): 0.0001
OTR Repeatability:
- cc/(m2·day): 0.01 or 1%, whichever is greater
WVTR Test Range:
- g/(m2·day) (Standard area 50cm2) : 0.005 ~ 40
- g/(m2·day) (MASK area 5cm2): 0.2 ~ 400 (Optional)
- g/(m2·day) (MASK area 1cm2): 1 ~ 2000 (Optional)
WVTR Resolution:
- g/(m2·day): 0.0001
WVTR Repeatability:
- g/(m2·day): 0.005 or 2%, whichever is greater
Temperature range:
- °C : 15 - 50
5 – 60 (Customized)
5 – 60 (Customized)
Temperature fluctuation:
- °C : ±0.05
Humidity range:
- %RH (Within standard temperature range): 0%, 5 - 90%±2%
Extended functions:
- GP-01 Gas Purification Unit: Optional
- DataShield: Optional
- Computer System required by GMP: Optional
- CFR21 Part11: Optional
Technical Specifications
Test Chamber : 3 test chambers
Specimen Size : 4.4” x 4.4”（11.2cm×11.2cm)
Specimen Thickness : ≤120 Mil（3mm）
Standard Test Area : 50 cm2
Carrier Gas: 99.999% high purity nitrogen, 99.5% oxygen (gas source is out of supply scope)
Carrier Gas Pressure : ≥ 40.6 PSI / 280 kPa
Port Size : 1/8 inch metal tubing
Power Supply : 120VAC±10% 60Hz / 220VAC±10% 50Hz（either one of two）
Instrument Dimensions : 23.6” H x 19.6” W x 27.5” D (60cm× 50cm× 70cm)
Net weight : 220Lbs（100kg）
