Automatic Polymer Lithium Battery Pouch Cell Sorting Machine ACEY-PCSM
-
27
-
0765 259 545

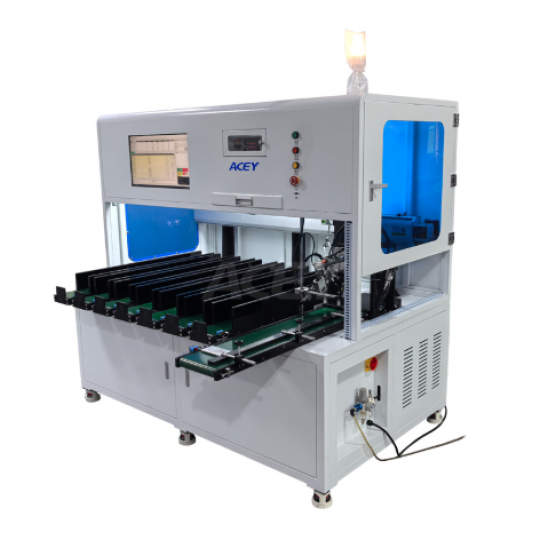

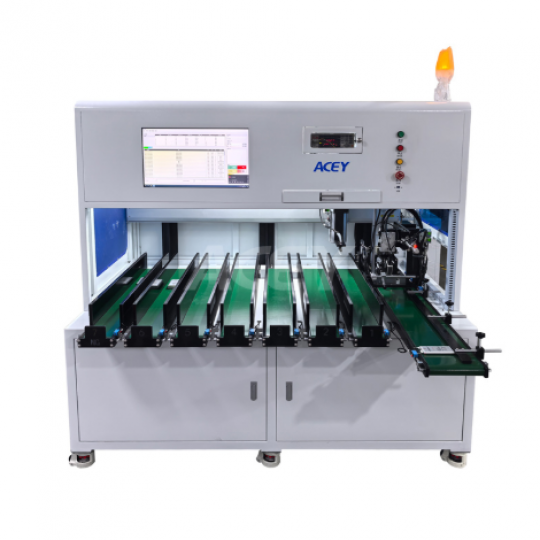

Automatic Polymer Lithium Battery Pouch Cell Sorting Machine
Model: ACEY-PCSM
ACEY-PCSM Automatic polymer lithium battery cell sorting machine is a high-efficiency automated machine specifically designed for the post-production sorting of polymer lithium battery cells. It is particularly suitable for applications in power batteries, 3C digital batteries, and energy storage batteries, meeting the precise cell grouping requirements of various battery packs in the new energy sector while complying with international safety standards.
Model: ACEY-PCSM
ACEY-PCSM Automatic polymer lithium battery cell sorting machine is a high-efficiency automated machine specifically designed for the post-production sorting of polymer lithium battery cells. It is particularly suitable for applications in power batteries, 3C digital batteries, and energy storage batteries, meeting the precise cell grouping requirements of various battery packs in the new energy sector while complying with international safety standards.
Automatic Polymer Lithium Battery Pouch Cell Sorting Machine
Model: ACEY-PCSM
Description
ACEY-PCSM polymer lithium cell automatic sorting machine is a device specially used for automatic sorting of polymer battery voltage and internal resistance. The equipment is mainly used in power batteries, 3C digital batteries, energy storage batteries and other application fields. It uses automation technology to achieve efficient screening and precise matching of polymer lithium batteries.
Equipment Specification
Applicable Battery Type: Polymer Lithium Battery
Compatible Size Range: Total Length: 50–170 mm, Width: 20–100 mm, Height: 4–20 mm
Control System: Upper Computer Controlled
Fully integrated process including manual loading, testing, barcode scanning, and automatic sorting, minimizing manual intervention
Equipped with MES system interface to record battery QR code information and test data in real time, and generate SPC (Statistical Process Control) analysis reports
Up to 1000 cells/hour per unit, over 3 times higher efficiency compared to manual sorting(No scanning code)
Environmental Requirements
Equipment Performance Specifications
Ambient Temperature: 5ºC – 35ºC
Humidity: 20% – 90% (non-condensing)
Air Supply Pressure: 0.5 – 0.6 MPa
Power Supply: 220V, 50Hz/60Hz
Floor Load Capacity: ≤200 kg/m²
Grounding Type: Direct grounding
Site Requirements: Free from pollution and strong electromagnetic interference
Installation Environment: Flat, vibration-free, and shock-free surface
Noise Level: ≤80 dB
Equipment Parameters
Overall Dimensions (L×W×H): 1800 mm × 1570 mm × 1750 mm (subject to actual configuration)
Weight: Approximately 493 kg
Machine Color: Computer White (customizable upon request)
Total Power Consumption: ≤1.5 kW
Model: ACEY-PCSM
Description
ACEY-PCSM polymer lithium cell automatic sorting machine is a device specially used for automatic sorting of polymer battery voltage and internal resistance. The equipment is mainly used in power batteries, 3C digital batteries, energy storage batteries and other application fields. It uses automation technology to achieve efficient screening and precise matching of polymer lithium batteries.
Equipment Specification
Applicable Battery Type: Polymer Lithium Battery
Compatible Size Range: Total Length: 50–170 mm, Width: 20–100 mm, Height: 4–20 mm
Control System: Upper Computer Controlled
Fully integrated process including manual loading, testing, barcode scanning, and automatic sorting, minimizing manual intervention
Equipped with MES system interface to record battery QR code information and test data in real time, and generate SPC (Statistical Process Control) analysis reports
Up to 1000 cells/hour per unit, over 3 times higher efficiency compared to manual sorting(No scanning code)
Environmental Requirements
Equipment Performance Specifications
Ambient Temperature: 5ºC – 35ºC
Humidity: 20% – 90% (non-condensing)
Air Supply Pressure: 0.5 – 0.6 MPa
Power Supply: 220V, 50Hz/60Hz
Floor Load Capacity: ≤200 kg/m²
Grounding Type: Direct grounding
Site Requirements: Free from pollution and strong electromagnetic interference
Installation Environment: Flat, vibration-free, and shock-free surface
Noise Level: ≤80 dB
Equipment Parameters
Overall Dimensions (L×W×H): 1800 mm × 1570 mm × 1750 mm (subject to actual configuration)
Weight: Approximately 493 kg
Machine Color: Computer White (customizable upon request)
Total Power Consumption: ≤1.5 kW
