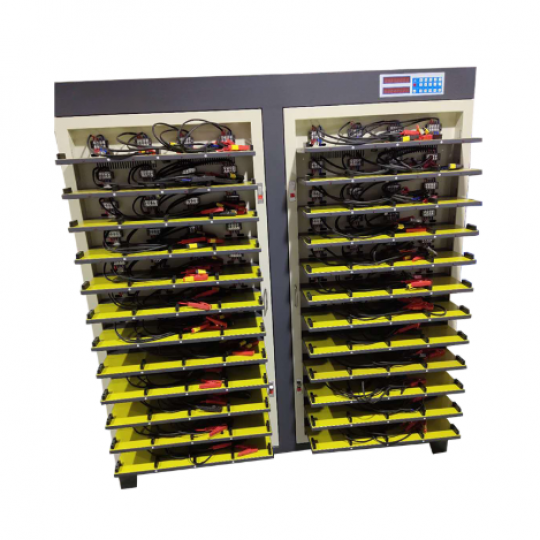

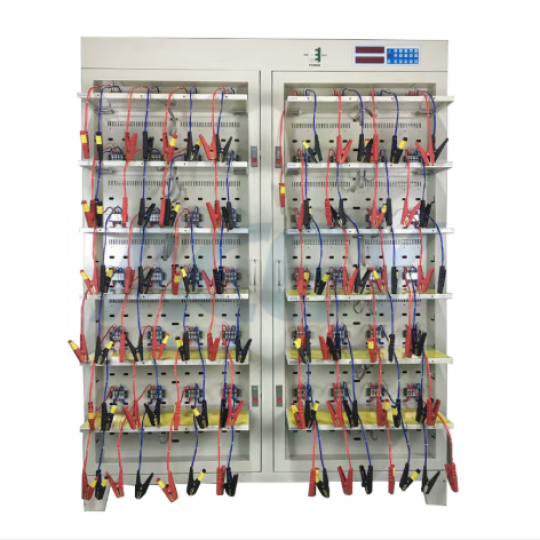

Lithium ion Battery Charge-discharge Cycle Life Testing Equipment With Different Clamps
Model: ACEY-BT
Manufacturer: ACEY - China
Contact for quotation: 0765 259 545
Email: sales@yktech.com.vn

Ứng dụng:

Lithium ion Battery Charge-discharge Cycle Life Testing Equipment With Different Clamps
Model: ACEY-BT
Manufacturer: ACEY - China
Contact for quotation: 0765 259 545
Email: sales@yktech.com.vn
Battery Charge-discharge Cycle Life Testing Equipment With Different Clamps
 Description
Li-ion battery cycle tester comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel. Each battery test station has independent constant current and constant voltage power.
 Features
*Each channel can be started and stopped at a single point, and the response speed is fast.
*The operation is simple, convenient and intuitive
*Modular design, easy to maintain.
*The digital current and voltage automatic calibration function
*Using network connection and SQL database
*The hardware technology is advanced, stable and durable.
Specification
Working power
Three-phase five-wire system AC380V±10%, 50HZ
Work environment
Temperature 0-40 degrees, relative humidity ≤80%
Heat dissipation
to enter the air naturally and exhaust the air upward
Channel Parameter
Voltage measuring range: 0-5V, 1MV resolution
Battery voltage range: Charge 0-4.5V: Discharge 4.5-2V
Constant voltage range: 2.5V-4.5V
voltage accuracy: Current accuracy: ±(1‰ reading +1‰ full)
Software Function
Control mode: Computer connection equipment work, FCL control
Communication mode: RS485 baud rate 57,600
Process set
A maximum of 32 work steps and 256 cycles are se
Charging mode
Constant current, constant pressure
Charging cutoff condition
Voltage, current, time, capacity
Discharge constant current
Discharge cut-off condition
Voltage, time, capacity
Defensive function
Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
Time range: Set it anywhere from 0 to 30,000 minutes
Time accuracy: ≤±1‰
Battery sorting
By capacity, time, discharge platform, etc
Data processing
Data, graphs, and loop diagrams
