Battery Electrode Roller Press Machine With Heating Function ACEY-HRP100
-
17
-
0765 259 545

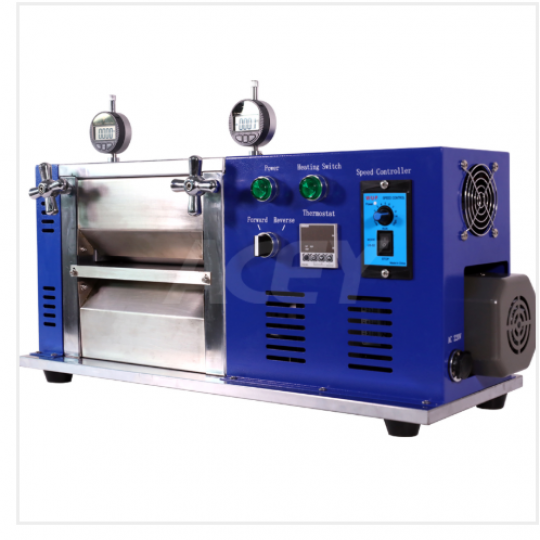

Battery Electrode Roller Press Machine With Heating Function
Model: ACEY-HRP100
he heating electric vertical roller machine is mainly suitable for the electric rolling of battery materials in the laboratory.
Model: ACEY-HRP100
he heating electric vertical roller machine is mainly suitable for the electric rolling of battery materials in the laboratory.
Battery Electrode Roller Press Machine With Heating Function
Model: ACEY-HRP100
Model: ACEY-HRP100
Acey - China
Battery Electrode Roller Press Machine With Heating Function
Description
ACEY-HRP100 is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials.
Features
Description
ACEY-HRP100 is especially suitable for thinning and increasing the density of lithium battery pole plates of clean energy materials.
Features
* Heating and rolling, the temperature is controlled by a thermostat, and is adjustable and displayed in numbers, can choose to work with or without heating.
*The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Vertical design, convenient for feeding and rolling of strip material.
*Adopt gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Electric rolling, forming automation, can be reversed operation.
*Small size, easy operation, flexible and quick to use.
*The roller has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.
*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Vertical design, convenient for feeding and rolling of strip material.
*Adopt gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Electric rolling, forming automation, can be reversed operation.
*Small size, easy operation, flexible and quick to use.
Specification
Roller size: diameter Φ96mmX100mm
Roller cylindricity: ≤±2um.
Roller hardness: : HRC62
Roller finish: Ra0.4 or more
Rolling thickness: 0～2mm, the gap can be adjusted
Roll placement vertical placement
Tablet thickness speed can be adjusted.
Rolling temperature adjustable from room temperature to 130℃, digital display value
Temperature control accuracy: ±0.5℃
Temperature resolution: 0.1℃
Power source voltage: AC220V/50Hz, power 800W
Feeding speed: 0～40mm/s, speed can be adjusted
Dimensions: L505mm*W225mm*H325mm
Equipment weight: 60KG
Roller size: diameter Φ96mmX100mm
Roller cylindricity: ≤±2um.
Roller hardness: : HRC62
Roller finish: Ra0.4 or more
Rolling thickness: 0～2mm, the gap can be adjusted
Roll placement vertical placement
Tablet thickness speed can be adjusted.
Rolling temperature adjustable from room temperature to 130℃, digital display value
Temperature control accuracy: ±0.5℃
Temperature resolution: 0.1℃
Power source voltage: AC220V/50Hz, power 800W
Feeding speed: 0～40mm/s, speed can be adjusted
Dimensions: L505mm*W225mm*H325mm
Equipment weight: 60KG
