6 Channel Cylindrical Battery Cell Sorting Machine ACEY-AS6S
-
42
-
0765 259 545

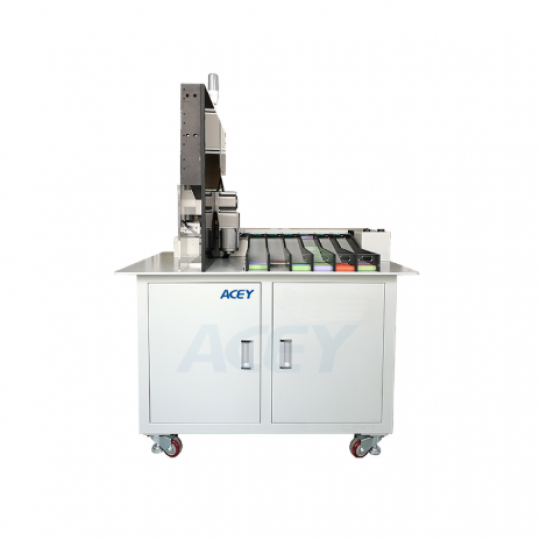

6 Channel Cylindrical Battery Cell Sorting Machine
Model: ACEY-AS6S
Manufacturer: ZACEY - China
Contact for quote: 0765 259 545
Email: sales@yktech.com.vn
The lithium-ion battery cell sorting machine is used to sort the internal resistance and voltage of cylindrical lithium batteries.
Model: ACEY-AS6S
Manufacturer: ZACEY - China
Contact for quote: 0765 259 545
Email: sales@yktech.com.vn
The lithium-ion battery cell sorting machine is used to sort the internal resistance and voltage of cylindrical lithium batteries.
6 Channel Cylindrical Battery Cell Sorting Machine
Model: ACEY-AS6S
Manufacturer: ACEY - China
Model: ACEY-AS6S
Manufacturer: ACEY - China
Product Description
The lithium-ion battery sorting machine is used to sort the internal resistance and voltage of cylindrical lithium batteries. The built-in tester adopts HIOKI3561/HK3561 high-precision internal resistance and voltage testing system, and the test results are analyzed by computer to generate classification data, and the historical test data can be queried, counted and exported.
ACEY-AS6S is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.
Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
Touch screen operation, easy and fast responding.
Automatically sort the voltage and internal resistance of cylindrical batteries.
The process detection signal is comprehensive and diverse.
Features
Automatically sort the voltage and internal resistance of cylindrical batteries like 18650, 21700, 26650, 32650, 32700
High precision and fast speed，High degree of automation, high productivity
Touch screen operation, easy and fast responding.
The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
Humanized processing of subtle links greatly guarantees the safety of operators and products
The lithium-ion battery sorting machine is used to sort the internal resistance and voltage of cylindrical lithium batteries. The built-in tester adopts HIOKI3561/HK3561 high-precision internal resistance and voltage testing system, and the test results are analyzed by computer to generate classification data, and the historical test data can be queried, counted and exported.
ACEY-AS6S is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.
Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
Touch screen operation, easy and fast responding.
Automatically sort the voltage and internal resistance of cylindrical batteries.
The process detection signal is comprehensive and diverse.
Features
Automatically sort the voltage and internal resistance of cylindrical batteries like 18650, 21700, 26650, 32650, 32700
High precision and fast speed，High degree of automation, high productivity
Touch screen operation, easy and fast responding.
The process detection signal is comprehensive and diverse, ensuring sufficient maturity and reliability
Humanized processing of subtle links greatly guarantees the safety of operators and products
Produt Parameter
Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650（other sizes available）
Receiving channel 5 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test: Test range： 8V
Accuracy ：±0.015%rdg,
Display resolution： 0.01mV
Sorting speed: 80ppm
AI.Set function: Intelligent one-button setting, specially designed for new functions of battery pack.
Size: L1070mm*W660mm*H1350mm
Weight: <150Kg
Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650（other sizes available）
Receiving channel 5 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test: Test range： 8V
Accuracy ：±0.015%rdg,
Display resolution： 0.01mV
Sorting speed: 80ppm
AI.Set function: Intelligent one-button setting, specially designed for new functions of battery pack.
Size: L1070mm*W660mm*H1350mm
Weight: <150Kg
