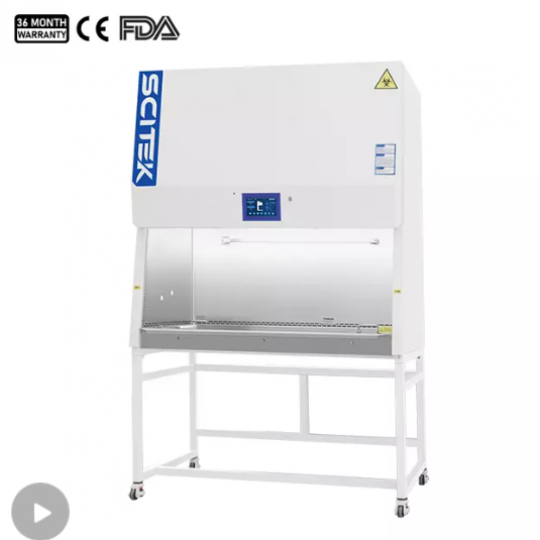

BSC-IIA2-1400 Biological Safety Cabinet Class II A2
Biological Safety Cabinet Class II A2
Model: BSC-IIA2-1400
Manufacturer: Scitek - China
| Model | BSC-IIA2-1100 | BSC-IIA2-1400 | BSC-IIA2-1500 | BSC-IIA2-1800 | |
|---|---|---|---|---|---|
| External Size (WxDxH)(mm) | 1050×780×2130 | 1400×780×2130 | 1500×780×2130 | 1800×780×2130 | |
| Internal Size (WxDxH)(mm) | 950×626×600 | 1300×626×600 | 1400×626×600 | 1700×626×600 | |
| Tested Opening | Safety height 200mm (8”) | ||||
| Max.Opening | 400mm | ||||
| Work Surface Height | 800mm | ||||
| Control System | Display | 7'' LCD touch screen | |||
| Alarm | Abnormal airflow velocity, ULPA filter failure, UV lamp failure, Front window at unsafe height | ||||
| Airflow System | Airflow Mode | 70% air recirculation, 30% air exhaust | |||
| Downflow Velocity | 0.35m/s±0.025m/s | ||||
| Inflow Velocity | 0.52m/s±0.025m/s | ||||
| Inflow Air Volume | 355m³/h (209CFM) | 486m³/h (286CFM) | 524m³/h (309CFM) | 636m³/h (375CFM) | |
| Downflow Air Volume | 718m³/h (423CFM) | 983m³/h (579CFM) | 1058m³/h (623CFM) | 1285m³/h (757CFM) | |
| Exhaust Air Volume | 355m³/h (209CFM) | 486m³/h (309CFM) | 524m³/h (309CFM) | 636m³/h (375CFM) | |
| Air filtration System | ULPA Filter | 2pcs ULPA filter, ≥99.9995% efficiency at 0.1~0.3 μm, filter life indicator | |||
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | ||||
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating | |||
| Work Surface | 304 stainless steel | ||||
| Front Window | Motorized, Two-layer laminated toughened glass ≥ 5mm. Anti UV. | ||||
| Electrical System | UV Lamp | 20Wx1 | 30Wx1 | 30Wx1 | 40Wx1 |
| Emission of 253.7 nanometers for most efficient decontamination,UV life indicator, UV timer. | |||||
| LED Lamp | 16Wx2 | 20Wx2 | 20Wx2 | 20Wx2 | |
| Max.Consumption | 750W (Not include socket loading power consumption) | ||||
| Fan power | 650W | ||||
| Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||
| Illumination | ≥1000Lux | ||||
| Sound Emission | ≤65dB(A) | ≤67dB(A) | |||
| Standard Accessory |
1. Base Stand; 2. Air Velocity Sensor; 3. ULPA Filter; 4. LCD Touch Screen; 5. LED Lamp×2; 6. UV Lamp×1; 7. Waterprof Socket×2; 8. Motorized Front Window; 9. Footmaster Caster; 10. Foot Switch; 11. Electric Air Valve Control; 12. RS485 interface |
||||
| Optional Accessory |
1. LED Lights With Adjustable Brightness 2. Gas Tap; 3. Water Tap; 4. IV Bar With Hooks; 5. Manual Adjustable Base Stand; 6. Arm rest |
||||
| Net Weight (kg) | 224 | 263 | 290 | 370 | |
| Gross Weight (kg) | 266.5 | 313 | 380 | 495 | |
| Shipping Size (WxDxH)(mm) | 1100x1080x1700 | 1550x1120x1710 | 1650x1120x1710 | 1950x1120x1710 | |
| Shipping Volume (m³) | 2.3 | 3 | 3.2 | 3.7 | |
