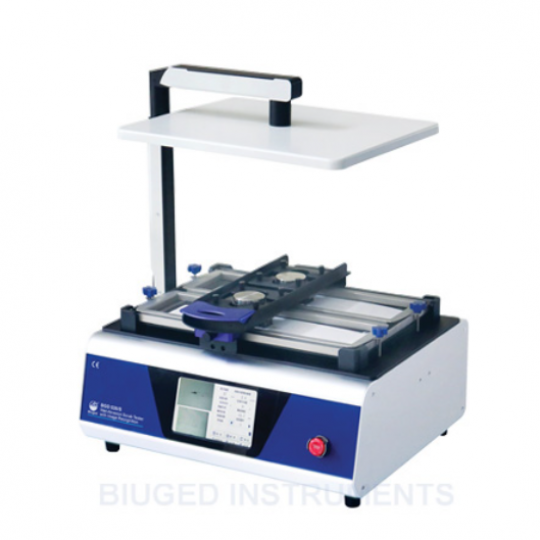

Wet Abrasion Scrub Tester with Image Recognition BGD 526/S

Multi-functional Cyclic Corrosion Test Cabinets Model: BGD 885/1

BGD 630 Rub Resistance Tester Model: BGD 630 BGD 630 Rub Resistance Tester is applicable in rub abrasion resistance test of printing works, light sensitive layer of PS boards, and coating layers of relative products. It can help users to analyze the affairs of lower abrasion assistance, ink layer falling-off, lower printable of PS boards, and rigid of coating layers of other products. ◆ Wide voltage range design(110-220V；50/60Hz), good compatibility ◆ Adjustable variable speed：5~95 c.p.m（stepless speed regulation） ◆ Micro-computer control, LCD displays data. ◆ Parameters set freely and permanently storage. ◆ Control and resolve the problems of low bad abrasion resistance and easy falling-off of ink layer of printing works. ◆ By test, controls production technique efficiently, avoids loss of goods returns caused by bad quality. ◆ The specimen's coating and receptor rub each other under specified speed and pressure load. Determine the abrasion of coating or ink layer by testing the decrement of coating concentration or decrement of coating thickness.

Precise Rub Resistance Tester Model: BGD 632 BGD 632 Precise Rub Resistance Tester is designed and manufactured according to ASTM D 5264 and TAPPI T 830 . It is applicable in abrasion resistance test of printed materials like labels, folding cartons, corrugated boxes, inserts, circulars, and other packaging materials having applied graphics on a flat substrate. It can help users to analyze the affairs of lower abrasion assistance, ink layer falling-off, lower printable of PS boards, and rigidity of coating layers of other products.

Ink Abrasion Tester Model: BGD 626 Manufacturer: Biuged - China BGD 626 Multi-section Ink Proofing Press is the newest product used for the testing the adaptability of ink printing. Compared with other types, it has many features as below: ◆ Distribute ink automatically and time and speed for distributing ink are adjustable. ◆ Used for lithography printing,letterpress printing or UV ink, UV flexographic ink ◆ Printing pressure and printing speed can be set according to the user’s requirments. ◆ Can print different substrates,such as book paper, art paper,matt art paper, gray paperboard,film and tinplate etc. ◆ High repeatability and reproducibility. ◆ High quality, easy to clean and maintenance, simpe and safe for operation.

Turnable Abrasion Tester Model:

Dial Reading Rotary Viscometer Model: BGD 151/1 Dial Rotary Viscometer is used in measuring viscosity friction and absolute viscosity of liquid. It has four rotors of NO.1-4 which can be chosen to be in accordance with the viscosity of the liquid and the rotation speed. It is widely used to determine viscosity of various liquids such as oil, paint, plastic, food, medicine, adhesive, etc. It is widely applied in the field of petroleum chemistry, medicine, food, light industry, textile industry, scientific research, etc

This is the newest type Shore hardness meter in the market, which is used for Shore hardness testing with pocket size model and integrated probe. With RS 232 interface and can be switched off automatically. The meter screen can show hardness result, average value, max. value directly. Standards: DIN53505, ASTMD2240, ISO7619, JISK7215 For getting a stable and accuracy reading, operator can choose a special holder while measuring. This holder can give a enough force through weights of meter pressing needle , thus ensure the meter foot could press on the sample completely.

These newest stirrers are of the highest quality. The core a direct current brushless motor is explosion-proof and overcomes the disadvantages of traditional stirrers. The stirrers can operate under high load for an extended period of time without any need for maintenance. Features: ◆ High reliability and outstanding performance. ◆ LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm（BGD 702&BGD 704&BGD 706）. ◆ Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes. ◆ Safety circuits allow for safe stop function in anti-stall or overload conditions. ◆ Smooth operation prevents accidental spillage and splashing. ◆ Provides constant speed even with changes in viscosities of the samples. ◆ Remote function provide PC control and data transmission ◆ Availability of auto-restart function in case of power loss for overnight operations.

Automatic Cross Hatch Tester BGD 535 As an important method to evaluate the adhesion degree between coating and substrate, cross cut method has been widely used. Although the traditional manual cross cut method is simple and convenient, due to the operator's cutting speed and coating cutting force can not be accurately controlled, the test results of different testers are different. The latest ISO 2409-2019 standard clearly defined that in order to obtain uniform and consistent cutting, automatic cross hatch adhesion tester with motor drive shall be used as far as possible.

Precise Oven BGD Series Precise Ovens with forced convection focused on addressing the requirements involved in drying or heating samples. With high quality and reliability, high cost performance, outstanding temperature accuracy, Biuged brand ovens has become the first option for many laboratories. Features： ◆ Microprocessor PID temperature controller with temperature control protection, digits display and timing function ensures a precise and reliable temperature control.（intelligent programmable LCD temperature controller is an option） ◆ Hot-air circulating system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution a high temperature in chamber ◆ Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.（Option） ◆ Recorder and printer are options which can print or record set parameters and trace variation curves of temperature.（Option） ◆ Can equip explosion-proof or vacuum （Option）
