Máy phá mẫu vi sóng

Microwave Workstation MAS-ll Plus

Views:
193
0765 259 545

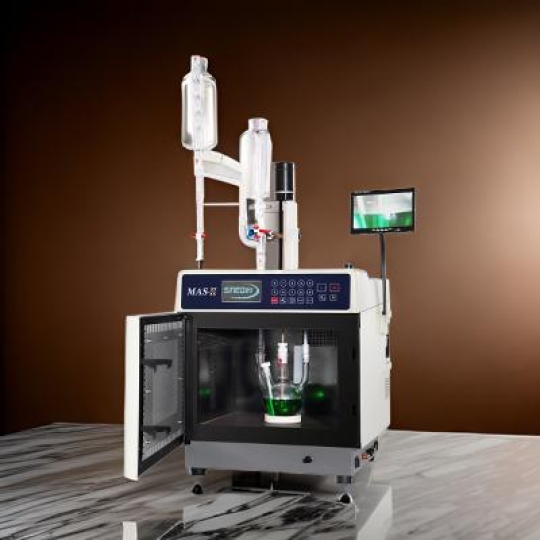

MAS-ll Plus Microwave Workstation
Model: MAS-ll Plus
Manufacturer: Hanon
Origin: China
As the latest multifunction microwave chemistry reaction platform of SINEO Microwave Chemistry Technology Co., Ltd, MAS-II Plus microwave synthesis/extraction reaction workstation, that can meet various experiment plans,has a rational, friendly and simple operation design. It is widely used in researches,such as organic synthesis, pharmaceutical chemistry, organic extraction, food science, analytical chemistry, inorganic chemistry, protein research,petrochemical engineering and materials chemistry, etc. MAS-II Plus supplies a versatile reaction platform that is superior to regular heating method.

Ứng dụng:

Products Information
Comment

Microwave Workstation MAS-ll Plus
Model: MAS-ll Plus
Manufacturer: Hanon
Origin: China

Main Technical Parameters:

1. Microwave power realizes inverter control through precise closed-loop PID technology during reaction process, with non-pulse microwave continuous-heating, automatic variation range of power: 0 to 1000W, and power can be automatically adjusted with temperature programming through Inverter technology and closed-loop control technology.

2．Stainless cavity with large capacity and multilayer Teflon spray. Any open mouth on microwave oven cavity is safe tohuman body, and microwave leakage is far lower than national standard and gets CE certification. The exhaust air rate of anti-corrosion high-power draughtfanis 5.8M3/Min, realizing a fast cooling.

3. Dual-channel temperature detection (DTD) technology can detect temperature not only through Pt100 thermocouple but also non-contact infrared ray. The system automatically determines temperature measurement type, monitor and control reaction temperature in real time. The infrared temperature measurement range is 0℃to 900℃with precision of ±1℃ and Pt100 thermocouple temperature measurement range is 0℃to 300℃with precision of ±1℃. The maximum operation temperature of standard equipment is 300℃.

Technical Parameter

power supply	220-240 VAC 50/60Hz 9A
microwave source	2450MHz，0-1000W continous and automatic adjustment withtemperature programming, PID technology
microwave oven cavity	Stainless steel cavity with large volume, multilayer anticorrosive PFA Teflon painting.
temperature measurement control system	Dual-channel temperature detection (DTD) technology, automatic judgement temperature measurement mode. infrared temperature measurement range 0℃ to 900℃ with deviation of ±1℃, Pt100 thermocouple temperature measurement range 0 to 300℃with deviation of ±1℃.
operating temperature	standard configuration instrument’s maximum operating temperature is 300℃ and the maximum theoretical operating temperature is 900℃ (peculiar configuration).
video system	Standard configuration photographic device built-in furnace chamber and 7’’ color TFT-LCD monitor. Reaction process will be displayed in time.
stirring system	Standard configuration magnetic stirring system with revolving speed of 30 to 1600 r/min, digital mechanical paddle-type stirring system with revolving speed of 30 to1700 r/min.
reaction vessel	50-1000ml standard reaction vessel, condenser, backflow and liquid adding accessory.
operating ambient temperature/humidity	0-40 °C / 15-80% RH
complete machine physical size	450515510mm (width x depth x height)
