Máy phân tích O2/CO2 để bàn Q32

Q32 Benchtop O2 / CO2 Analyzer

Views:
3
0765 259 545

Benchtop O2 / CO2 Analyzer
Model: Q32
QuanTek - USA

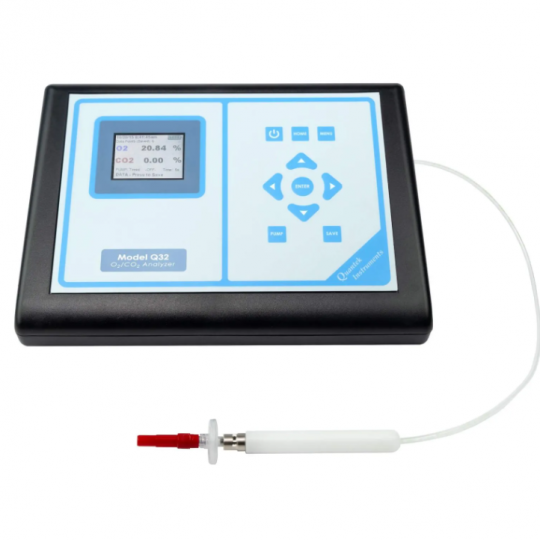

The Quantek Model Q32 is our next generation benchtop O2 / CO2 analyzer. Use it for MAP (modified atmosphere package) testing, along with many other types of applications.
This microprocessor-controlled instrument features onboard data collection, a hold function (the reading freezes on the screen when the test is complete), a 12-hour internal battery, a TFT full color screen, and EasyCal calibration using the touchpad.
Readings can be exported to a USB thumbdrive (included) as a CSV file for further processing. The Q32 comes with a battery pack, internal pump, carry case, and accessories.

Ứng dụng:

Products Information
Comment

Benchtop O2 / CO2 Analyzer
Model: Q32
QuanTek - USA

Weight	2.8 kg
Dimensions	35.6 × 30.5 × 25.4 cm
Carbon Dioxide Sensor Type	Solid-state Infrared
CO2 Minimum Detection Limit	0.1% (0-50% or 0-100% range) or 0.01% (0-10% or 0-20% range)
Accuracy - Carbon Dioxide	± 1% of reading, or ± 0.1% CO2 (whichever is greater)
CO2 Calibration Controls	Digital Keypad
CO2 Calibration Frequency	Every 12 months; calibration gas recommended.
Oxygen Range	0.00 to 100%
Oxygen Sensitivity	0.01%
O2 Resolution	0.01%
Expected Lifetime (oxygen)	4-5 years
Analog Output	0-5V
Resolution	0.01%
Accuracy	+/- 0.1% (from 0-20%), +/- 0.2% (from 20% to 50%), +/- 0.5% (from 50% to 100%)
Drift	less than 0.4% per year
Oxygen Sensor Type	Proprietary Electochemical
Response Time	20 seconds to T95
O2 Sensor Lifetime	4-5 Years
O2 Sensor Body	Anodized aluminum (CO2) and ABS Resin (O2)
Sample Connection	Sample Probe
Sample Method	Pump
Sample Pump	Internal, draws ~5cc/sec
Pump Timing	2-20 seconds, continuous, or cycling on/off, programmable
Minimum Sample Required	15cc
Sampling Assembly	Probe with luer connection for tri-beveled needle, PTFE tubing
Oxygen Calibration Controls	Digital Keypad Adjustment
Instrument Calibration	EasyCal calibration
Exhaust port	Vents to air
Power Supply	100 to 240 VAC, internationally compatibile
Battery Operation	Included, internal shrink wrapped NiMH battery pack
Input Voltage	100-240V, 50-60Hz
Battery Life	12-16 hour runtime
Measures: O2, CO2	O2, CO2
Form Factor	Benchtop
Size	11W x 3H x 8D in (279W x 76H x 203D mm)
Weight	3.5 lbs (1.59 kg)
Warranty	2 years, parts and labor
Standards	CE, RoHS
