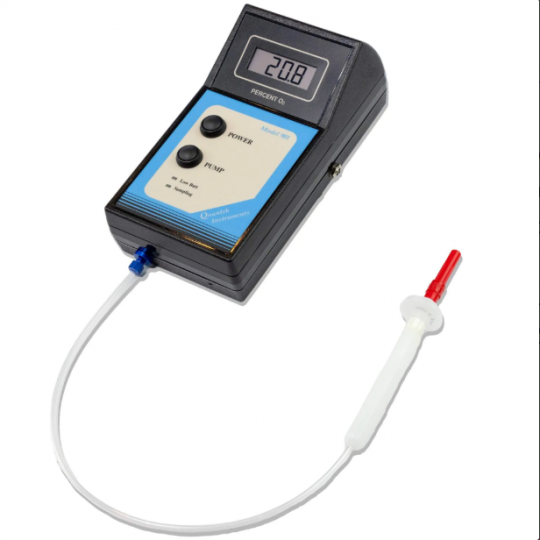

Model 901 Headspace Oxygen Analyzer
Headspace Oxygen Analyzer
Model 901
The Quantek Model 901 is a battery-operated, portable headspace oxygen analyzer.
Other headspace analyzers require a new sensor every 1-2 years. The Model 901 is equipped with a long life sensor, expected to last 5+ years. The Model 901 is trusted by small and large food packagers, producers, and quality control personnel throughout the world.
Use it in the lab, or on the packaging line. Non-technical personnel will find it very easy to use – and at less than 3 pounds, it can be easily transported to other locations.
Model 901
The Quantek Model 901 is a battery-operated, portable headspace oxygen analyzer.
Other headspace analyzers require a new sensor every 1-2 years. The Model 901 is equipped with a long life sensor, expected to last 5+ years. The Model 901 is trusted by small and large food packagers, producers, and quality control personnel throughout the world.
Use it in the lab, or on the packaging line. Non-technical personnel will find it very easy to use – and at less than 3 pounds, it can be easily transported to other locations.
Headspace Oxygen Analyzer
Model 901
Model 901
Weight: 6 kg
Dimensions:19 × 15 × 8 cm
Oxygen Range: 0.0 to 100%
Oxygen Sensitivity: 0.1%
O2 Resolution:0.1%
Analog Output: Not Available
Resolution: 0.1% Oxygen
Accuracy: +/- 0.1% (below 10% oxygen).
Drift : less than 0.4% per year
Dimensions:19 × 15 × 8 cm
Oxygen Range: 0.0 to 100%
Oxygen Sensitivity: 0.1%
O2 Resolution:0.1%
Analog Output: Not Available
Resolution: 0.1% Oxygen
Accuracy: +/- 0.1% (below 10% oxygen).
Drift : less than 0.4% per year
Oxygen Sensor Type: Proprietary electrochemical cell, expected lifetime 4-5 years
O2 Sensor Body: ABS Resin
Sample Connection: Sample Probe
Sample Method: Pump
Sample Pump: Internal, draws ~5cc/sec, with 2-12 second adjustable timer (on side of unit)
Pump Timing: 2-12 second adjustable pump time, potentiometer on side of analyzer
Minimum Sample Required : 10cc
Sampling Assembly: Probe with female luer connection for filter and needle, low volume PTFE tubing
Oxygen Calibration Controls: SPAN adjustment, zero adjustment
Instrument Calibration: Calibrates with room air; SPAN adjustment on side; ZERO adjustment on side
Exhaust port: Vents to air
Power Supply: Four "AA" NiMH rechargeable batteries; auto shut-off after 45 minutes idle. 100-240V (50-60Hz) Charger included, with US or international interchangeable plug adapter (upon request)
Backup Power: Four "AA" alkaline batteries (not included)
Battery Operation: Included
Input Voltage: 100-240V, 50-60Hz
Battery Life: 10-14 hours before recharging
Measures: O2, CO2 : O2
Size: 8 x 4 x 1.8 in. (200 x 100 x 40 mm)
Weight: 1 lb. (450 gms)
Standards: CE, RoHS
Measures: O2, CO2 : O2
Size: 8 x 4 x 1.8 in. (200 x 100 x 40 mm)
Weight: 1 lb. (450 gms)
Standards: CE, RoHS
Product Similar
Portable O2 / CO2 Analyzer
Model: Q22
The Quantek Model Q22 is our next generation portable O2 & CO2 analyzer. Use it for MAP (modified atmosphere package) testing, incubator applications, and much more.
This microprocessor controlled instrument features onboard data collection, hold function (the reading freezes on the screen when the test is complete), 12 hour internal battery, TFT full color screen, and EasyCal calibration using the touchpad.
Readings can be exported to USB thumbdrive (included) as CSV file for further processing. The Q22 comes with battery pack, internal pump, carry case, and accessories.
